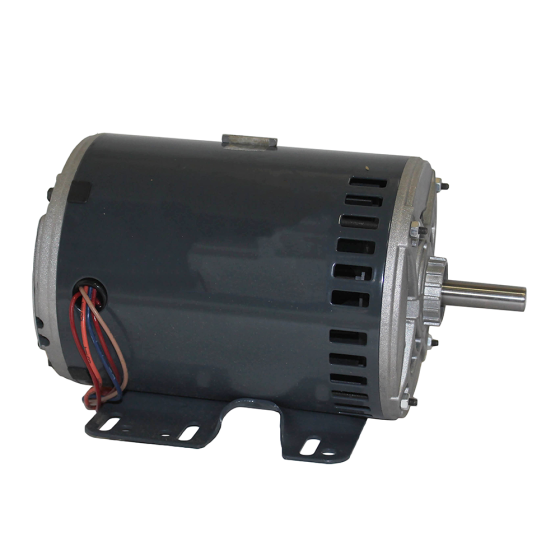

Belt Drive Blower Motor 1.5HP, 1725RPM, 460Vac, 2.6A, 40 °C
Item
HD56FR462
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Horsepower: 1.5
• RPM: 1725
• Rotation: Reversible
• Voltage: 460Vac
• Amperage: 2.6
• 3 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
| Specification | |
|---|---|
| Motor HP | 1-1/2 | RPM | 1725 |
| Electrical | |
|---|---|
| Amps | 2.6 | Hertz | 60 | Voltage | 460 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 26 | Exterior Dimensions (D) (inches) | 8.000000 | Exterior Dimensions (W) (inches) | 9.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 26.000000 |
