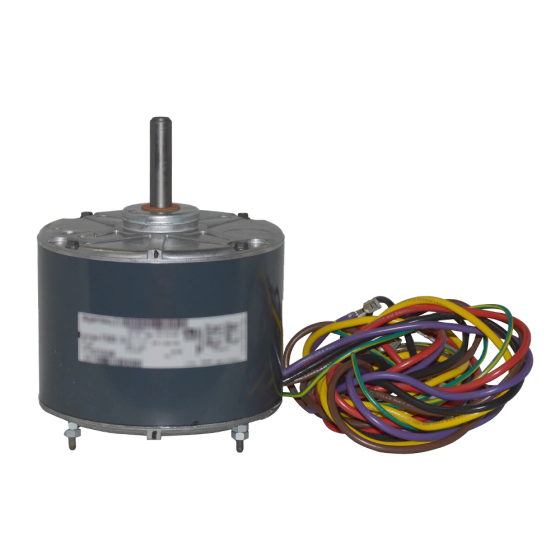

Condenser Fan Motor 1/5HP, 1125RPM, 460Vac, 0.42A, 5µF/370Vac, 1 Speed, (PSC)
Item
HC37VE460
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
Specification | |
---|---|
Motor HP | 1/5 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CW LE | RPM | 1125 |
Electrical | |
---|---|
Amps | 0.42 | Hertz | 60 | Voltage | 460 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 16 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 15.000000 | Shipping Weight (lbs) | 17.000000 |
