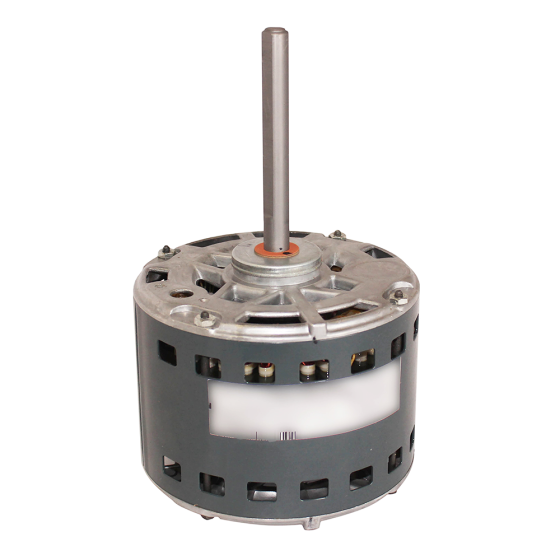

Blower Motor 1/4HP, 1030/850 RPM, 208/230Vac, 7.5µF/370Vac
Item
HC39AB230
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Horsepower: 1/4
• RPM: 1030/850
• Rotation: Counter-Clockwise
• Voltage: 208/230Vac
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Shaft Size: 0.50 x 4.25
Specification | |
---|---|
Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/4 | Motor Type | PSC | Rotation | CCW | RPM | 1030 | Shaft Diameter | 0.50 | Shaft Length | 4.25 |
Electrical | |
---|---|
Hertz | 60 | Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 10.3 | Exterior Dimensions (D) (inches) | 5.500000 | Exterior Dimensions (W) (inches) | 5.500000 | Exterior Dimensions (H) (inches) | 9.500000 | Shipping Weight (lbs) | 11.250000 |
Warranty | |
---|---|
Country of Origin | Mexico |
