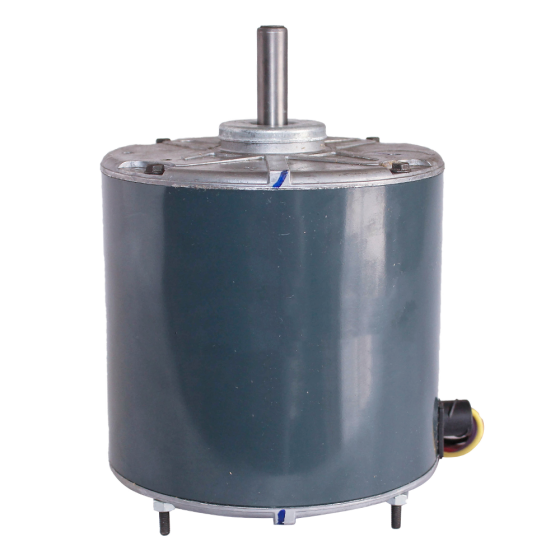

Condenser Fan Motor 1/4HP, 850RPM, 208/230Vac, 1.45A, 5µF/440Vac, 1 Speed, (PSC)
Item
HC42AR231
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 850
• Number of Speeds: 1
• Rotation: Counter-Clockwise
• Voltage: 208/230Vac
• Amperage: 1.45
• Capacitor: 5µF/440Vac
• 1 Phase
• Hz: 60
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
SUPERSEDES FROM
• HC40AQ231
• HC41AE221
• HC37AE223
• HC41AE230
| Specification | |
|---|---|
| Motor HP | 1/4 | Motor Type | PSC | Number of Speeds | 1 | Rotation | CCW | RPM | 850 |
| Electrical | |
|---|---|
| Amps | 1.45 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 14.4 | Exterior Dimensions (D) (inches) | 6.900000 | Exterior Dimensions (W) (inches) | 15.520000 | Exterior Dimensions (H) (inches) | 7.200000 | Shipping Weight (lbs) | 14.400000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
