PRODUCT DETAILS

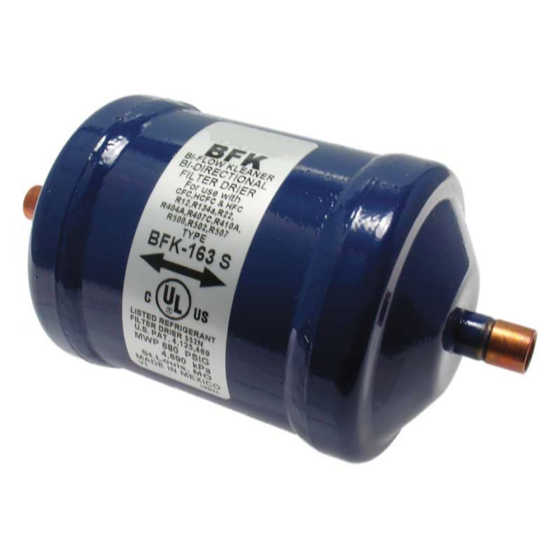

The BFK is a solid core, Bi-directional, liquid line filter drier for heat pump applications for use with CFC, HCFC, and HFC refrigerants.
FEATURES & BENEFITS
• Internal check valves allow flow and filtration in either direction, eliminates need for external check valves.• High moisture and acid removal capacity.
• Corrosion resistant epoxy powder paint finish.
• Approved for POE oils with Copeland™ compressors.
• Desiccant Volume: 16cu. in.
• Inlet Connection Size: 3/8” ODF
• Outlet Connection Size: 3/8” ODF
• Desiccant Blend: Blend optimized for high water capacity and acid capacity
• Filtration: 40 microns
• Maximum Working Pressure: 680 psig
• Approvals: UL/CUL File Number SA3124
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.75 | Exterior Dimensions (D) (inches) | 3.400000 | Exterior Dimensions (W) (inches) | 8.700000 | Exterior Dimensions (H) (inches) | 3.500000 | Shipping Weight (lbs) | 1.750000 |
