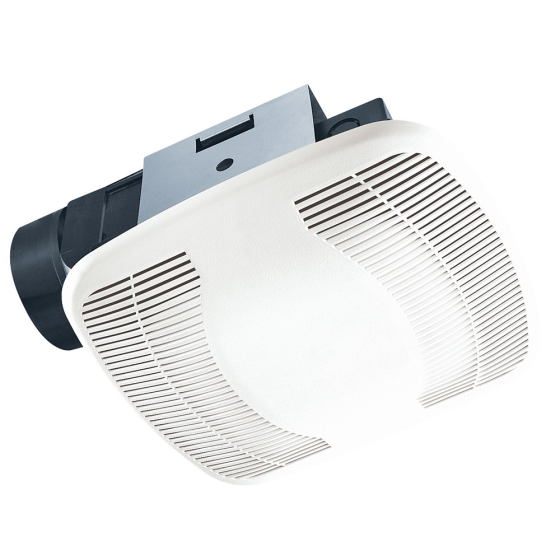

Air King® ENERGY STAR® Certified Snap-In Installation High-Performance Ventilation Fan 4 in. Round Duct, 80CFM, 2.0 Sones, 120Vac, (Wall Mountable)

APPLICATIONS

The Air King® BFQ80 High Performance Snap-In Installation Ventilation Fan provides powerful ventilation with easy SNAP-IN installation.

FEATURES & BENEFITS

• Easily installs using the SNAP-IN Mounting System.
• UL listed for installation over a tub or shower on a GFCI circuit.
• CFM @ .1 SP: 80
• Sones @ .1 SP: 2.0
• Sound Level: Quiet
• Effective Ventilation Area: 80 to 100 sq. ft.
• ASHRAE 62.2 Ventilation: Local
• ENERGY STAR® certified: No
• Can be used to Comply with California Title 24 requirements: No
• CALGreen: No
• Duct Size: 4″ round
• Collar / Damper: Plastic
• Mounting: SNAP-IN Bracket
• Housing: ABS Plastic
• Grille: White, polymeric grill secured in place with torsion springs; easily removed, if necessary, dimensions – 10-3/4 " x 11-5/8 ".
• Blower Wheel: One-piece polymeric wheel 5-1/8" diameter, 2-3/8 " wide, with 48 fins.
• Motor: Heavy duty, permanently split capacitor, plug-in, 4 pole motor, life time lubrication, thermally protected, suitable for continuous operation.
• Voltage Rating: 120 volts, 60 hz.
• Fan Housing: PC/ABS polymeric, dimensions 8-3/4" x 9" x 4-3/4".
• Duct Collar: Plastic collar for 4" duct connection, comes complete with built in non-metallic back draft damper for quiet operation.
• Ventilating Area: For bathrooms up to 80 sq. ft. For other rooms up to 100 sq. ft.
• Unit Mounting: Designed to mount in ceilings with at least 6" of clearance. The unit is mounted directly to the joist using a separate lock-in bracket (included with unit). The housing will mount through drywall thickness up to 3/4 ", with a rough-in opening of 8-7/8" x 9-1/8".

INCLUDES

• Ventilation Fan Housing
• Blower (motor)
• Grille
• SNAP-IN Mounting Bracket
• Damper and Duct Collar
• User Manual
