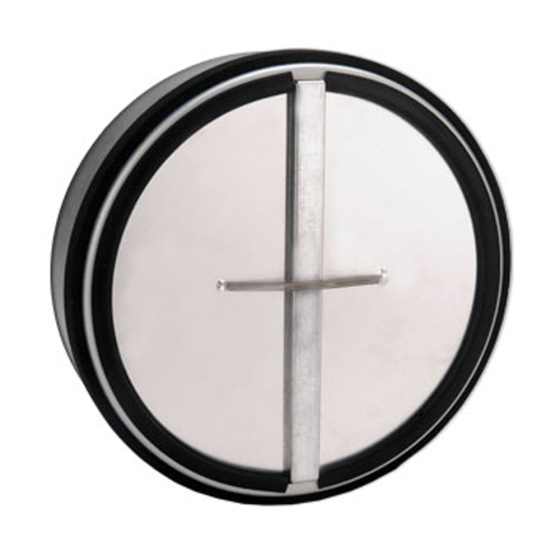

FEATURES
• Neoprene damper seal to minimize air leakage• Steel housing, aluminum butterfly damper blades
• Gasket designed to withstand temperatures from -22 F to 180 F
• Requires from 0.04 to 0.08 in. wg pressure to open
• Simple installation in any position - entire assembly inserts into duct
• Exterior foam gasket assures a tight seal against duct
• Includes stamped metal sleeve with center pin / post designs
| Specification | |
|---|---|
| Fitting Type | Dampers & Disks | Fitting Size | 6" | Fitting Sub Type | Backdraft Dampers |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 3.000000 |
