Avg Temp 12-Ft

APPLICATIONS

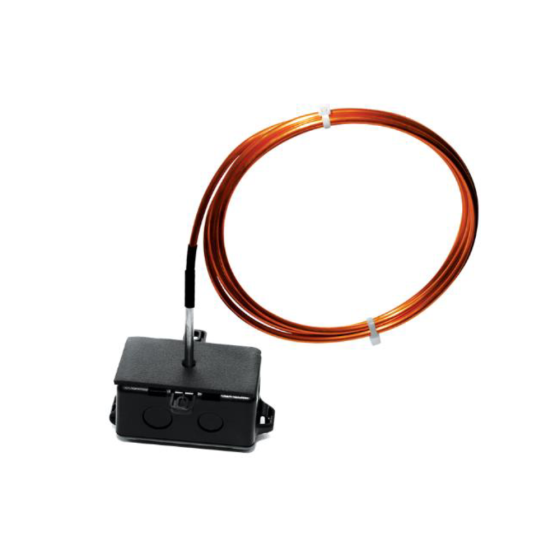

The Carrier Bendable Multipoint Thermistor Copper Averaging Series features a copper sensing element with AWG Etched Teflon colored lead wires to differentiate the different sensor types. Each sensor is manufactured with 4 or 9 sensing points determined by the length of the sensing element. The averaging sensors provide a better average temperature of the air inside the duct when compared to a single point duct sensor. Each of the elements is sealed to prevent moisture intrusion and includes a foam pad to seal the duct and dampen vibrations. The benefits of using a copper sensing element is that it has improved thermal conductivity and higher corrosion resistance than similar aluminum style averaging sensors. Additionally, copper has been proven to have an antibacterial effect to many of the airborne contaminants, mold and bacteria found in duct systems. Our standard enclosures include the galvanized “-GD” or plastic duct enclosure with hinged cover “-PB”. Each unit includes nylon wire ties and mounts with optional copper capillary and universal plastic mounting clips, NEMA/IP Rated Weather Proof enclosures and NIST certificates as referenced on the back of the product data sheet.

FEATURES & BENEFITS

• Sensor Type | Sensor Curve: Thermistor | Non-Linear, NTC (Negative Temperature Coefficient)
• Number Sensing Points | Number Wires: Four | Two (Non-Polarity Sensitive)
• Sensor Series Output @ 25ºC (77ºF ) (Lead Wire Colors): 10KΩ nominal | (White/Green)
• Accuracy 0-70ºC (32-158ºF): +/-0.20ºC (+/-0.36ºF)
• Stability: Sensor Dependent; Contact Carrier for more information
• Response Time (63% Step Change): 15 Seconds nominal
• Power Dissipation Constant: 4 mW/ºC
• Enclosure Specifications (Temperature, Flammability, NEMA/IP Ratings): ABS Plastic, -30 to 90ºC (-22 to 194ºF), UL94-HB, Plenum Rated
• Storage Temperature Range: -40 to 85ºC (-40 to 185ºF)
• Operating Humidity Range: 10 to 95% RH, non-condensing
• Sensor Material | Sensor Diameter: Copper | 0.210” (5.34 mm) nominal
• Fitting Material | Flammability Rating: Polyamide 66 (High Performance Nylon) | UL94-HB
• Foam Pad Material/Flammability Ratings: Neoprene/EPDM/SBR Polymer | UL94-HBF; FMVSS-302; MIL-R-6130C
• Lead Length | Conductor Size: 12” (30.5 cm) | 26 AWG (0.40 mm)
• Lead Wire Insulation | Wire Ratings: Etched Teflon (PTFE) Colored Leads | MIL-W-16878/4 (Type E)
• Conductor Material: Silver Plated Copper
• Product Weight: 8: 0.96 lbs. (0.435 kg)
• Agency Approvals: RoHS2, WEEE
