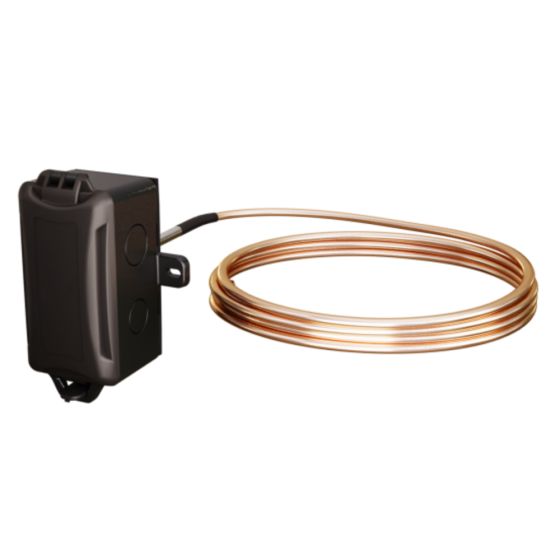

Averaging Temperature Sensor, 12'
Item
10K-CP-A-12
The galvanized metal box-bendable copper averaging configuration has a mounting flange for quick installation and a foam pad to dampen vibrations. The copper capillary houses sensing elements which are wired in a series/parallel configuration to provide an averaged output. 10K Ohms @ 77 Deg F (25 Deg C) Type II Thermistor
Safety Standards | |
---|---|
California Prop 65 | Yes | Hazardous Material | No |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 2.230000 | Exterior Dimensions (W) (inches) | 3.600000 | Exterior Dimensions (H) (inches) | 4.790000 | Shipping Weight (lbs) | 1.000000 |
