ATLAS® Digital Refrigerant Scale 220lb

  • California Prop 65

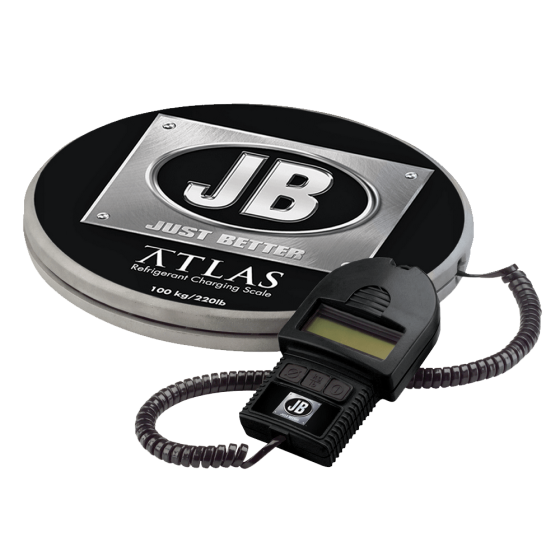

The JB ATLAS refrigerant charging scale is designed for the HVAC/R industry. Everyday users will appreciate the advanced solid state load cell for superior sensitivity (0.25 oz/ 10 gm) and accuracy. The ATLAS’s 220 pound (100 kg) weight capacity, all metal construction, heavy duty plastic storage case, and easy-to-read hand held combine to make the ATLAS the best overall package in the industry. Pound for price, our 220 pound scale competes at a 110 pound price. Operates with a 9-Volt battery (not included).

DS-2000 Features:

• Solid state load cell accurate to 0.25 oz/ 10gm without need of cylinder directly on center of weighing platform

• LCD screen on a handheld can be read from a distance or in direct sunlight

• 220 lb (100 kg) capacity

• Pieces are modularized so parts are easily replaced without need to purchase entirely new unit

• Displays weight in decimal pounds, pounds and ounces, and kilograms

• Auto shut off after 30 minutes to preserve battery and can be disabled

• Optional charging module (DS-MOD) turns the ATLAS into a charging station without the cylinder ever leaving the weighing platform. Transfers up to 999 pounds in charging increments of .25 oz (10 gm)

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 10
Exterior Dimensions (D) (inches) 18.000000
Exterior Dimensions (W) (inches) 15.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 10.000000
