Mini Lime Pumps are designed with both the pump and reservoir as one integral unit, sharing a common body. No connecting tubes or wires are needed. The pumps clip directly onto the reservoir for minimal suction lift. Line set cover is included.
FEATURES & BENEFITS
• Left or right install • Easily accessed for filter cleaning • Fortress Line Set included • 3A NC dry contacts rated @ 5A inductive at 230V AC • Fully potted electronics (Potting is the process of epoxy filling a complete assembly for resistance to shock, vibration, moisture, chemical and promotes sound dampening.) • Includes anti-siphon device • Duty Cycle: Non-Continuous • Pump Length:3.75'' • Pump Width: 1.625'' • Pump Height: 3.125'' • Capacity: 2.9-3.2 GPH @ 0'' Head / 1.3-1.5 GPH @ 33'' Head • Max BTUs: 54,600 • Max Head in Feet: 33 • Max Temperature: 104°F • Max Suction Lift: N/A • Sound Level: 25.5dB(A) • Dry Contact Rating: 3A NC • Voltage: 230Vac • Amperes: .16 • Watts: 16 • Remote Reservoir: N • Plenum Rated: N • Cable Length: 6''
INCLUDES

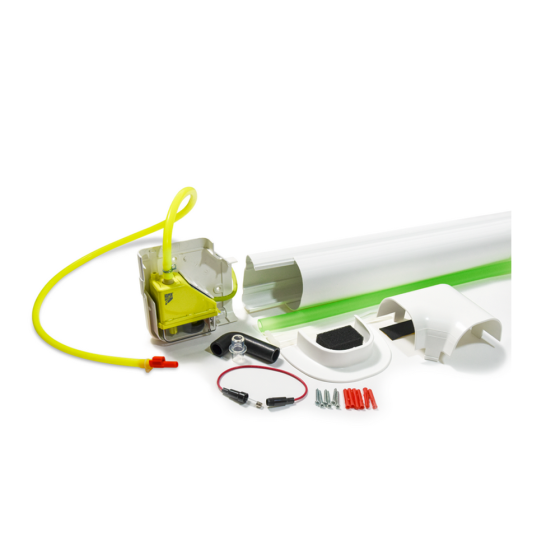

• Monobloc Pump Assembly • 5' x 1/4'' i.d. Vinyl Discharge Tube • 6'' x 1/4'' i.d. Vinyl Breather Tube • 20'' x 5/8'' i.d. Inlet Tube • Inline Fuse • Drain Hose Adaptor • Line set Cover Elbow (Fortress) • 31'' Line set Cover • Cable Ties (6) • Wall Plugs & Screws • Ceiling Plate • Installation Manual • Anti-Siphon (1) • 90° Elbow
