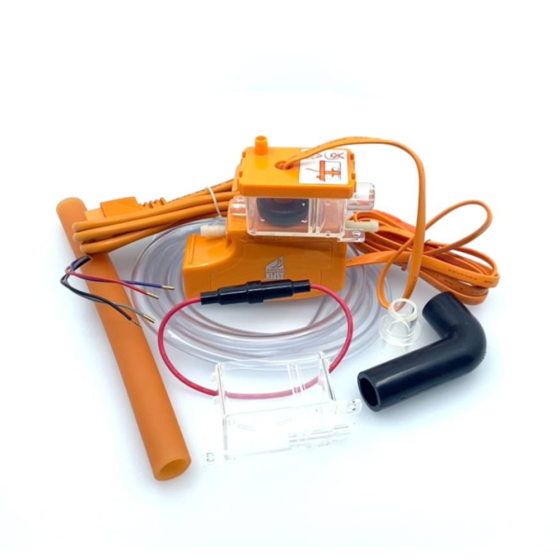

Orange pumps are designed with a separate pump and reservoir. The 2 elements connect together with a length of 1/4" id vinyl tube and a communication cable, which are both usually around 6 ft. long. This may be extended if required.
FEATURES & BENEFITS
• Self-Priming • Pump installs remotely above ceiling • Pan mount and inline style reservoir included • Modular terminals for fast connection • Gravity Inlet • Fully potted electronics* • 3A NC dry contacts rated @ 5A inductive at 230V AC • Includes anti-siphon device • Duty Cycle: Non-Continuous • Pump Length: 4.25'' • Pump Width 1.5'' • Pump Height: 2'' • Capacity: 2.9-3.2 GPH @ 0'' Head / 1.2-1.6 GPH @ 33' Head • Max BTUs: 49,500 • Max Head in Feet: 33 • Max Temperature: 104°F • Max Suction Lift: 5' • Sound Level: 26dB(A) • Dry Contact Rating: 3A NC • Voltage: 100–250v • Amperes: .17 • Watts: 16 • Remote Reservoir: Y • Plenum Rated: N • Cable Length: 6' • Sound level and pump performance varies with voltage frequency.
