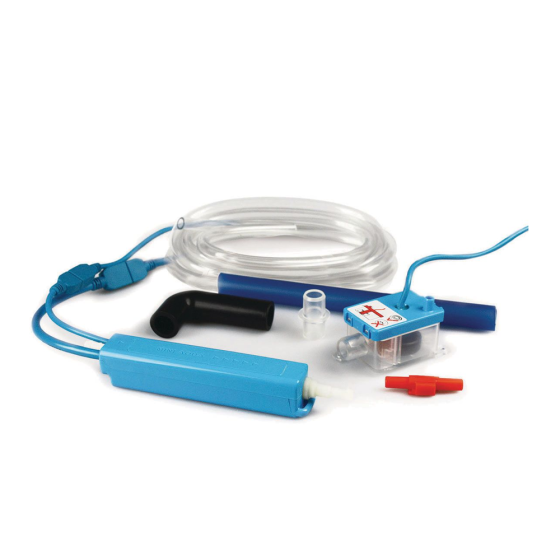

Mini Aqua Pumps are designed with separate pump and reservoir. The 2 elements are connected together with a length of 1/4" id vinyl tube and a communication cable, both of which are usually around 6 feet long.
FEATURES & BENEFITS
• Ultra-slim profile • Installs within evaporator or inside line set cover • Self-Priming • Integral hanging loop and separate reservoir facilitates attachment in vertical applications • 3A NC dry contacts rated @ 5A inductive at 230V AC • Modular terminals for fast connection • Inline fuse • Fully potted electronics (Potting is the process of epoxy filling a complete assembly for resistance to shock, vibration, moisture, chemical and promotes sound dampening.) • Includes anti-siphon device • Pump Length: 6.5'' • Pump Width: 1.125'' • Pump: 1.125'' • Capacity: 2.9-3.2 GPH @ 0' Head / 1.2-1.6 GPH @ 33' Head • Max BTUs: 49,500 • Max Head in Feet: 33 • Max Temperature: 104°F • Max Suction: Lift 5' • Sound Level: 21dB(A) • Dry Contact Rating: 3A NC • Voltage: 100–250v • Amperes: .2 MAX • Watts: 16 • Remote Reservoir: Y • Plenum Rated: N • Cable Length: 6'
