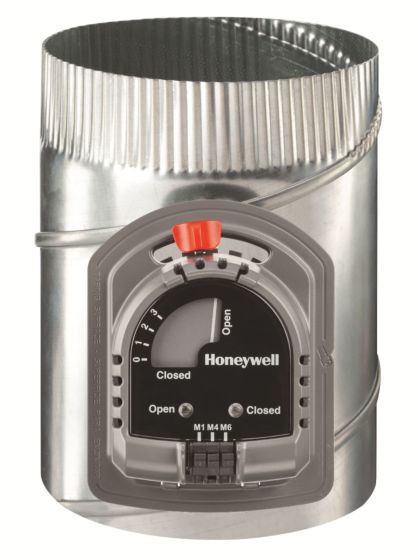

Honeywell 6" Round Automatic Damper (PC/SO)

FEATURES

The ARD is a power close and spring open zone damper. It has a 24-volt motor used to control circulating air in HVAC systems and is used when normally open damper is required. The ARD is typically used with TrueZONE electronic zoning systems and others.

• Adjustable close position range stops.
• Shipped as power closed/spring return open damper.
• Available in 5 to 10 inch, 12, 14, 16, 18, and 20 inch diameter sizes.
• Male (crimped) and female (uncrimped) ends to connect to any rigid or flexible round duct.
• Rated to operate up to 1 in. wc.
• Blade closes off tightly against gasket for minimal leakage.
• Fail-safe, normally open operation.
• Simple, easy-to-wire, two-wire (M1 and M6) installation. Optional third wire (M4) powers LED in open position only (does not power motor).

SPECIFICATIONS

Motor Electrical Rating: 24 Vac, 60 Hz, 8VA.
Motor Electrical Connection: Push terminals. Solid (not stranded) wire is recommended.
Motor Nominal Angular Rotation: 90°.
Motor Torque: Minimum 71 in.-oz. (500 millinewton meters) output torque available when motor is energized and device is at the spring return initial start position.
Nominal Motor Timing at 77 °F (25 °C) Ambient: Energized at rated load: 30 seconds. De-energized (spring return): 10 seconds.
Motor Ambient Temperature Rating: 40 to 140 °F (5 to 60 °C).
Leakage: Less than 1% at 1/2 in. wc.
Pressure Drop: Maximum at full open: 0.0329 in. wc at 800 ft/min.
Maximum Static Pressure: 1 in. wc for all models.
Motor Shaft Rotation Direction: Clockwise, when energized and viewed from the base or shaft end.
Motor Mounting Means: Direct connection to damper shaft.
Motor Mounting Position: Multi-poise.
Frame: Galvanized steel spiral duct, crimped on downstream side.
Gauge: ARD5-ARD12: 24 gauge frame, and 22 gauge blade.
Blade: ARD14-ARD20: 22 gauge frame, and 20 gauge blade
