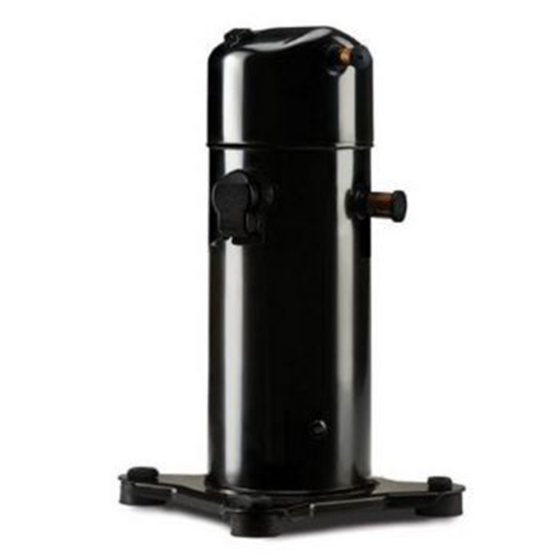

LG Hermetic Scroll Compressor R410A, 41,500BTU, 208/230Vac, Single Phase
Item
AQA042KAE
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 41,500
• Refrigerant: R410A
• Connection Type: Molded Plug (Included)
• Oil: POE (Polyol Ester)
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 70/440µF
• MCC: 28.6
• LRA: 99
• RLA: 18.3
• Hertz: 60
• Suction Line Size: 7/8"
• Suction Line Height: 11.97"
• Discharge Line Size: 1/2"
• Discharge Line Height: 16.42"
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 20 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 41 to 45kBTU | Suction Line Height | 11.97" | Discharge Line Height | 16.42" | Discharge Line Size | 1/2" | Oil | POE (Polyester) | BTU Output | 42000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 67 | Exterior Dimensions (D) (inches) | 10.500000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 22.000000 | Shipping Weight (lbs) | 67.000000 |
| Warranty | |
|---|---|
| Country of Origin | Korea (North) |
