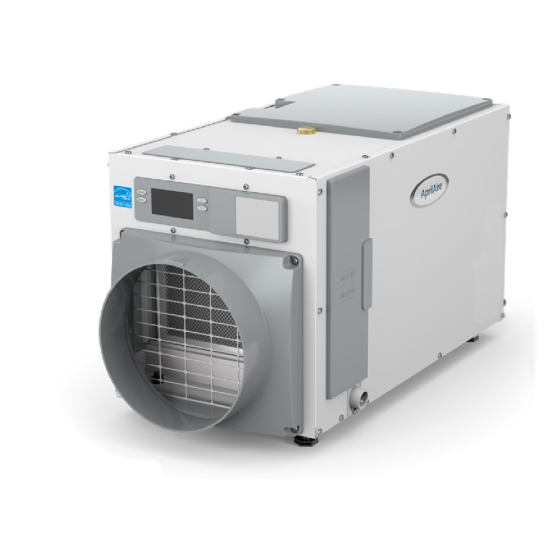

The AprilAire E080 Dehumidifiers are designed to dehumidify the air coming into the unit by passing the incoming air over an evaporator coil to drop the air temperature below the dew point of the air. Moisture is removed from the air and drained out of the unit to a common floor or waste drain. The air is then reheated in the condenser coil and exits the unit.
Dehumidification occurs until the set point is reached, then shuts off until periodic sampling determines a need for operation.
APPLICATION
The E080 Dehumidifiers are perfect for a wide range of applications, including whole-home dehumidification and control of moisture in basements and crawl spaces.
CIRCULATION
The E080 can also be programmed to circulate the air within a crawl space. This evens out relative humidity levels and temperature in the space, eliminating variations in the environment.
• Built-in automatic digital control with display.
• Can be set up for dehumidification and ventilation or zoning.
• Top or front mounting control options
• ½” EPS cabinet insulation
• Top or end air discharge orientation
• Washable MERV 8 filter (part number 5881) and 10” diameter inlet/outlet duct collars
• Backdraft damper at outlet
• R32 refrigerant
• Corrosion-resistant aluminum coils
• 8’ power cord (plug type - E080 only; E080H is a hardwired unit and doesn’t ship with a powercord)
• Field-configurable hardwire option is available
• 10°F-30°F discharge air temperature rise
• ¾” MNPT Threaded drain connection with adapters for threaded connection or plastic hose included
