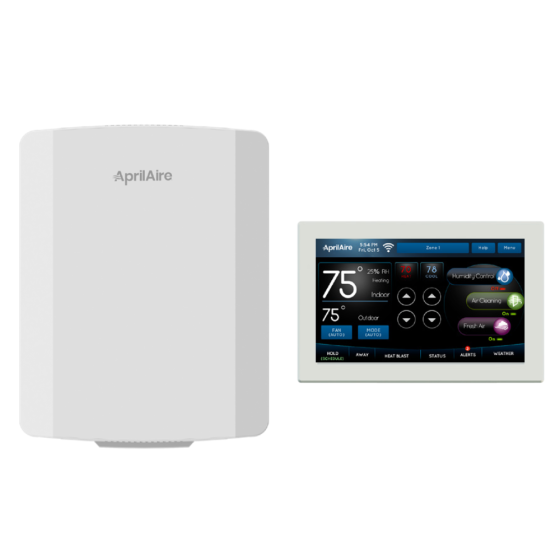

Aprilaire® 3-Zone Base Kit (2H/2C Conventional & 4H/2C Heat Pump - White)

FEATURES

• Remote access using a downloadable app
• Indoor air quality control
• Humidification with automatic or manual control
• Dehumidification
• Event-Based™ air purification
• Ventilation with temperature and humidity limits
• Temperature control
• Heat Blast® raising the room temperature 3° to 5°F
• Large touch screen with adjustable backlight
• 7-day programmability
• Displays room temperature, room humidity, temperature setting, and outdoor temperature
• Air filter, humidifier, dehumidifier and HVAC service reminders
• Easy to use temperature control to override program schedule at anytime
• Progressive recovery
• Built-in compressor protection that prevents damage to your equipment
• 2H/2C conventional and 4H/2C heat pump
• 5-year warranty

CONTROL
• 7 inch touch screen color LCD
• Both black and white enclosures
• Monitor and control all zones
• Full IAQ control
• Additional zone button screens
• Scheduling
• Schedule settings
• Alert settings
• Away settings
• Display settings

SPECIFICATIONS

• Voltage: 18-30VAC, 50/60 Hz
• Damper output per zone (fused): 18VA at 185°F, 30VA at 90°F
• Control range: 45° to 99°F (4° to 32°C)
• Display range: 32° to 99°F (0° to 40°C)
• Accuracy: ± 1°F (± .5°C)
• Storage temperature: -30° to 150°F (-34.4° to 65.5°C)
• Operating ambient temperature: 32° to 158°F (0° to 70°C)
• Shipping temperature: -30° to 150°F (-34.4° to 65.5°C)
• Operating humidity: 5% - 90%, non-condensing
• ADR Compliant: Yes
