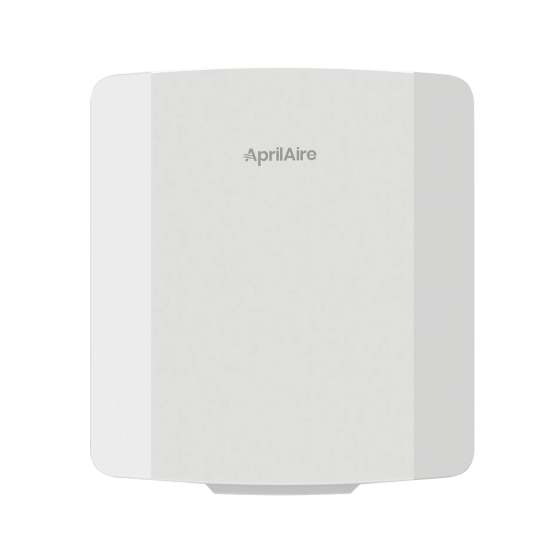

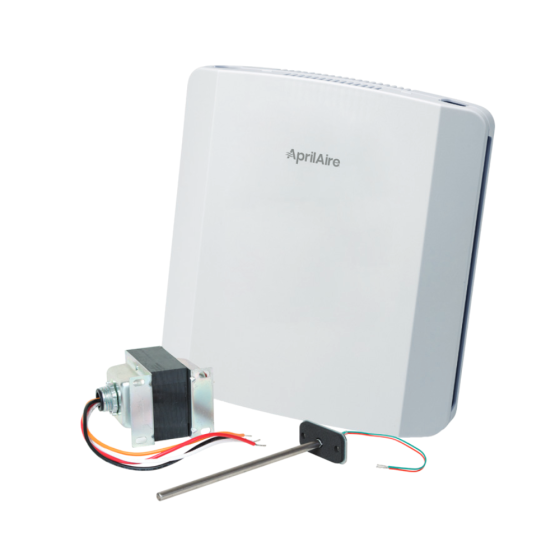

AprilAire® Zoned Comfort Control™ 2-Zone Panel Kit (1H/1C Conventional)
Item
6202K
FEATURES
The Model 6202 Zone Comfort Control Panel increases comfort and reduces energy costs by maintaining consistent temperatures throughout the house.
• For use with conventional single stage heating and cooling systems• Temperature control in 2 zones
SPECIFICATIONS
• Overall Dimensions 8 63⁄100" W x 9 33⁄50" H x 1 43⁄50" D• Maximum Current
• Damper output per zone (fused): 18VA at 158°F, 30VA at 90°F
• zone panel and thermostats (fused): 18VA at 158°F, 30VA at 90°F zone
• panel consumption: 4VA max
• Note: Use 18 or 20 AWG solid (non-stranded) wire
• Humidity 5%–90% RH, non-condensing
• Operating Temperature: 32°F–158°F
• Shipping Temperature: -40°F–180°F
• Voltage: 18-30VAC 50/60 Hz
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 8.000000 | Exterior Dimensions (W) (inches) | 8.000000 | Exterior Dimensions (H) (inches) | 5.000000 | Shipping Weight (lbs) | 5.000000 |
