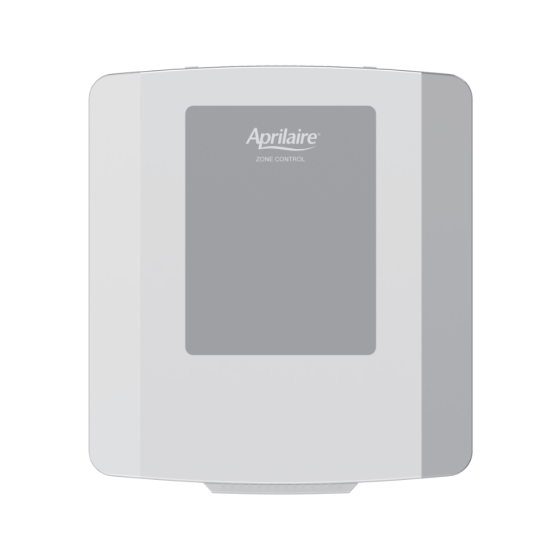

AprilAire 2-Zone Control Panel Kit (1H/1C Conventional)

Item

HP6202

FEATURES

The Model 6202 Zone Panel is for conventional heat/cool applications.

• 1 heating and 1 cooling stage

• Equipment protection

• Vacation mode – Zone 1 thermostat controls all zones

• Voltage: 18-30VAC 50/60 Hz

• Damper output per zone (fused): 18VA at 158°F, 30VA at 90°F

• Zone panel and thermostats (fused): 18VA at 158°F, 30VA at 90°F

• Zone panel consumption: 4VA max

• Note: Use 18 or 20 AWG solid (non-stranded) wire

• Temperature (operating): 32°F – 158°F

• Temperature (shipping): -40°F – 180°F

• Humidity: 5% – 90%, non-condensing

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	5
Exterior Dimensions (D) (inches)	14.000000
Exterior Dimensions (W) (inches)	7.000000
Exterior Dimensions (H) (inches)	5.000000
Shipping Weight (lbs)	5.000000
