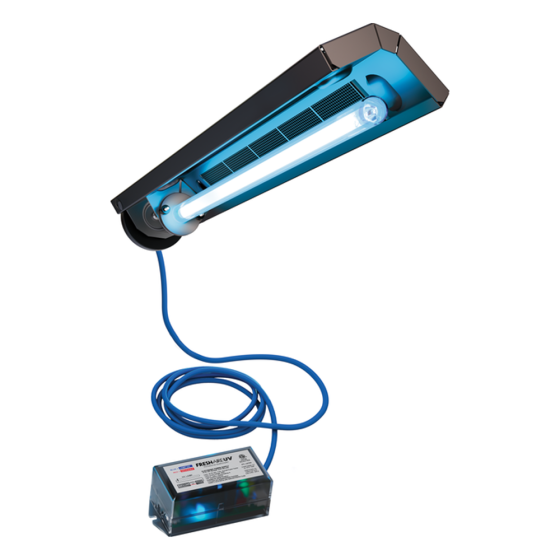

APCO-X Mag UV Air Purifier 24V, 15"

Item

TUV-APCOX-MAG15-ER3

Skip to the beginning of the images gallery

FEATURES

APCO-X Mag is the result of more than a decade of development and is our most advanced indoor air treatment system. It combines UVC light and our proprietary activated carbon technology to safely & effectively neutralize odor-causing VOCs and biological contaminants. It not only treats the air but also helps keep the HVAC system clean and efficient and extend it’s life.

Exclusive V-Twin EverCarbon Matrix™ with nanotech antimicrobial coating

• Features 65% more effective surface area, improving performance 33% over previous model

Advanced 3-year UVC 254nm quartz lamp

• Long lasting, safe and effective

Direct coil exposure

• Ideal for limited-space HVAC systems with no duct access, or for direct coil exposure

UL Validated to produce no harmful ozone

• Scientifically tested ensuring safety

Continuously treats the whole-system

• Treats the air in the entire home all the time and is virtually maintenance free (UVC lamp replacement only)

Coated Anti-Vibration Magnet

• Secures assemble in-place

SPECIFICATIONS

• Volts: 24VAC (+/-10% 18-32 VAC)

• Hertz: 60

• Amps: .8@24V

• Ducted or Ductless: Ducted

• Lamp Wattage: 17

• Replacement Bulb: TUVL-315

Specifications

Electrical
Voltage	24

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	3
Exterior Dimensions (D) (inches)	18.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	4.000000
Shipping Weight (lbs)	3.000000

Resources

TUV-APCOX-MAG15-ER3_TDS.pdf
