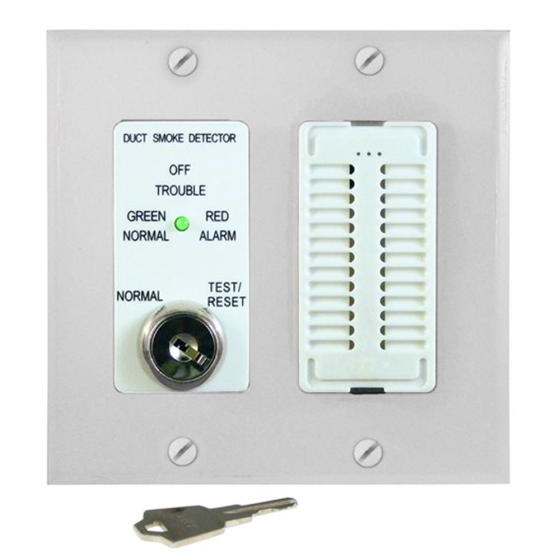

APC Remote Control with Sounder Assembly, Double Gang Plate (White)

Item

MSR-50RKA/W

Skip to the beginning of the images gallery

FEATURES

The MSR-50RKA/W remote accessories are designed for use with Air Products and Controls duct smoke detectors to provide the range of functionality required by your local commercial Application. Key test station in a white double gang Decora style control assembly with enhanced sounder.

The strobe and audible buzzer features are not ADA compliant and not intended for life safety notification or evacuation purposes (public mode). These functions are for duct smoke detector status indication only (private mode).

• The MSR-50RK provides a key-operated detector test and reset function.

• Enhanced sounder assembly.

• Decora style cover plates (white).

• Warranty 3 year

• Operating Element Key switch

SPECIFICATIONS

• Status Indicator – Alarm Red

• Status Indicator – Fault Off

• Operating Temperature (Min) 0°C

• Operating Temperature (Max) 49°C

• Operating Temperature 0 to 49°C

• Standards UL 268

• Weight 0.88lbs

• Color White

• Product Height (Wo/Base) 114.3mm

• Product Width 114.3mm

• Key Type Remote Test station test & reset key

• Housing Type Face plate

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	3.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	5.000000
Shipping Weight (lbs)	1.000000

Resources

MSR-50RKA_W_Installation.pdf

MSR-50RKA_W_TDS.pdf
