APC Control with Indicator, Control Assembly with White Single Gang Cover Plate

FEATURES

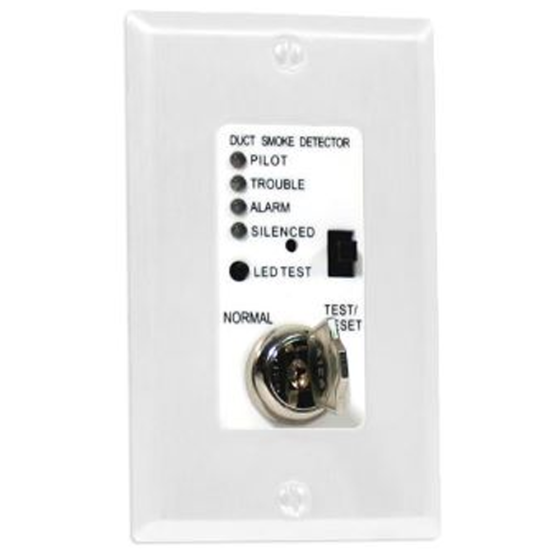

The MSR-100R/W remote accessory is designed to be used with Air Products and Controls duct smoke detectors to provide the most complete functionality ever available in such a device. These devices are placed in single gang Decora style white plate.

Brand Information
The MSR-100 Series remote accessories are designed to be used with Air Products and Controls duct smoke detectors to provide the most complete functionality ever available in such a device.

Brand Features
The remote accessory is available as a single gang remote indicator/control (MSR-100R Products), or with the addition of a second-gang enhanced sounder assembly (ordered as MSR-100RA), a second-gang enhanced strobe assembly (MSR-100RV)or a second-gang enhanced sounder/strobe assembly (MSR-100RAV). All versions are compatible with standard Decora style cover plates (choice of white, red or stainless steel).
The indicator/control assembly provides:
Visual indication of detector Pilot, Trouble and Alarm Functions

• Selectable audible indication of Alarm, Trouble or both

• Buzzer Silence function, with silenced indication and “ringback” following condition correction

• Lamp/Buzzer test function

• Key-Operated detector Test and Reset functions

• Lever-operated “No-Tools” terminal block

• Port for plugging in the optional strobe assembly

• Blue “SMOKE”, red “FIRE” strobe lens decals (with strobe)

Application
The strobe and audible buzzer features are not ADA compliant, and not intended for life safety notification or evacuation purposes (public mode). These functions are for duct smoke detector status indication only (private mode).

Product Information
The MSR-100R/W remote accessory is designed to be used with Air Products and Controls duct smoke detectors to provide the most complete functionality ever available in such a device. These devices are placed in single gang Decora style white plate.

Key Features
The remote accessory is placed in a white Decora style single gang remote indicator/control
The indicator/control assembly provides:
LED visual indication of detector Pilot, Trouble and Alarm Functions
Selectable audible indication of Alarm, Trouble or both
Buzzer Silence function, with silenced indication and “ringback” following condition correction
Lamp/Buzzer test function
Key-Operated detector Test and Reset functions
Lever-operated “No-Tools” terminal block

Key Benefits
Designed and Manufactured in the USA.

General
Warranty 3 year

Performance
Operating Element Key switch

Electrical
Status Indicator – Alarm Red
Status Indicator – Fault Yellow

Environmental
Operating Temperature (Min) 0°C
Operating Temperature (Max) 49°C
Operating Temperature 0 to 49°C

Conformance
Standards UL 268

Mechanical
Weight 0.4lbs
Color White
Product Height (Wo/Base) 114.3mm
Product Width 69.85mm
Key Type Remote Test station test & reset key
Housing Type Face plate
