Plug-In Transformer 120Vac Primary, 24Vac Secondary, 20Va

Item
AM-24830A
  • California Prop 65

PRODUCT DETAILS

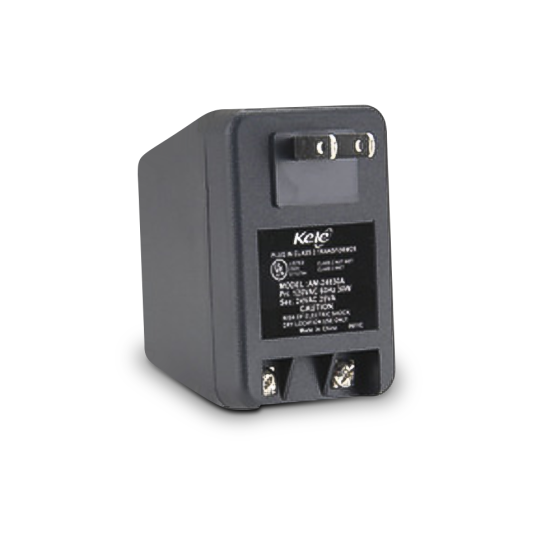

The Model AM-24830A plug-in Class 2 transformer is a UL Listed Class 2 transformer that simply plugs into any 120 volt AC wall outlet and provides a 24 volt AC output with 20VA of available power. The small size and screw terminal connections make these transformers a convenient and portable source of low voltage for many applications.

FEATURES & BENEFITS

• Plugs into any 120VAC wall outlet.
• Convenient and portable source of low voltage.
• Screw terminal connections.
• High efficiency, low heat generation.
• UL Listed.
• Supply Voltage: 120 VAC.
• Output Voltage: 24 VAC.
• Output Current: 830 mA.
• Operating Temperature: 14° to 104℉ (-10° to 40℃).
• Operating Humidity: 30% to 85% RH.
• Mounting: Plug in.
• Dimensions: 3.2"H x 2.2"W x 1.9"D (8.1 x 5.6 x 4.8 cm).
• Weight: 2.2 lb (1 Kg).
• Approvals: UL File #E112794, Class 2 Not Wet, Class 3 Wet, CSA.
• Warranty: 1 year.

Electrical
Hertz 60
Safety Standards
California Prop 65 Yes
Specification
Primary Voltage 120Vac
Secondary Voltage 24Vac
Va Rating 20Va
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 1.900000
Exterior Dimensions (W) (inches) 2.200000
Exterior Dimensions (H) (inches) 3.200000
Shipping Weight (lbs) 5.000000
