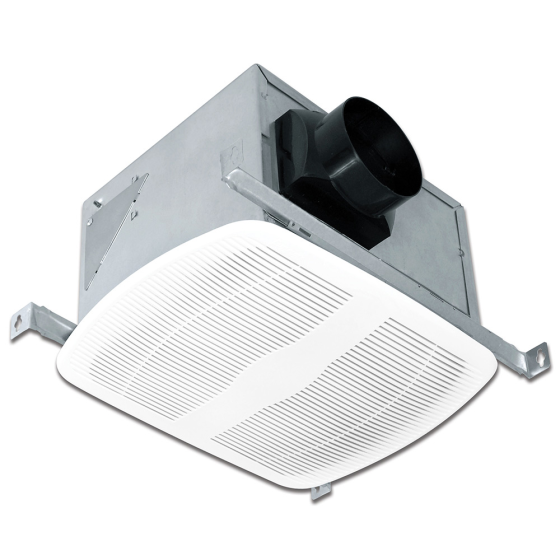

Air King® ENERGY STAR® Certified Ventilation Fan 4 in. Round Duct, 80CFM, 1.0 Sones, 120Vac

APPLICATIONS

The Air King® AK80LS-1 ENERGY STAR® Certified Ventilation Fan provides a quiet, effective and efficient ventilation solutions for your bathroom, laundry room or other areas of the home needing ventilation.

FEATURES & BENEFITS

• Can be used to comply with the ventilation standards required by LEED for Homes
• Easily installs using the included adjustable hanging brackets.
• UL listed for installation over a tub or shower on a GFCI circuit.
• Side access panel allows you to wire the fan from inside or outside the housing.
• Specification Sheet Download: AK80LS1
• CFM @ .1 SP: 80
• Sones @ .1 SP: 1.0
• Sound Level: Very Quiet
• Watts: 28.1
• Effective Ventilation Area: 80 to 100 sq. ft.
• ASHRAE 62.2 Ventilation: Whole House/Local
• ENERGY STAR® certified: YES
• Can be used to Comply with California Title 24 requirements: YES
• CALGreen: Rooms other than bathrooms
• Duct Size: 4″ round
• Collar / Damper: Plastic
• Mounting: Hanger Bars
• Housing: Metal
• Grille: White, polymeric grill secured in place with torsion springs; easily removed if necessary, dimensions - 11" x 13-3/4 ".
• Blower Wheel: One piece polymeric centrifugal blower wheel, 5-7/32" diameter, 2-29/32" wide, with 30 paddles.
• Motor: Heavy duty, permanently split capacitor, plug-in, 4 pole motor, life time lubrication, suitable for continuous operation.
• Voltage Rating: 120 volts, 60 hz.
• Fan Housing: 23 gauge galvanized steel housing.
• Dimensions: 10-7/8 " x 9-3/8"x 7-7/8 ".
• Duct Collar: Plastic collar for 4" duct connection, comes complete with built in non-metallic back draft damper for quiet operation.
• Ventilating Area: For bathrooms up to 80 sq. ft. For other rooms up to 100 sq. ft.
• Electrical Connections: 1/2 " electrical knockouts provided.
• Single Pack Shipping Info
• Unit Mounting: The housing will mount in ceilings with at least 8" of clearance and through drywall thickness up to 3/4 ", with a rough-in opening of 11" x 9-1/2". The housing will mount either between 16" or 24" on center joists, using the 4 supplied housing mounting rails. The housing mounting rails can be adapted for overhead mounting (hardware not provided).

INCLUDES

• Ventilation Fan Housing
• Blower (motor)
• Hanger Bars for Mounting
• Damper and Duct Collar
• Grille
• User Manual
