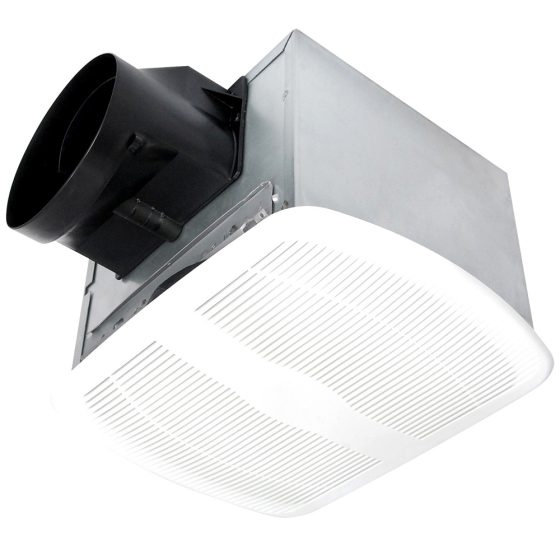

Air King® ENERGY STAR® Certified Humidity Sensing Deluxe Quiet Ventilation Fan 6 in. Round Duct, 100CFM, 1.0 Sones, 120Vac

APPLICATIONS

The Air King® AK100LS6H ENERGY STAR® Certified Humidity Sensing Deluxe Quiet Ventilation Fan provides a quiet, effective and automated ventilation solution for your bathroom.

FEATURES & BENEFITS

• Excellent ASHRAE 62.2 solution
• Can be used to comply with the ventilation standards required by LEED for Homes
• Integrated humidistat senses the humidity level of the room and turns the fan on until the humidity level is below the preset percentage. Humidity level can be set up to 80% relative humidity.
• Humidity sensing deluxe quiet Ventilation Fans easily install using the included adjustable hanging brackets.
• UL listed for installation over a tub or shower on a GFCI circuit.
• Side access panel allows you to wire the fan from inside or outside the housing.
• HVI Certified performance.
• CFM @ .1 SP: 100
• Sones @ .1 SP: 1.0
• Sound Level: Quiet
• Watts: 26.6
• Effective Ventilation Area: 100 to 125 sq. ft.
• ASHRAE 62.2 Ventilation: Whole House/ Local
• ENERGY STAR® certified: YES
• Can be used to Comply with California Title 24 requirements: YES
• CALGreen: Compliant for use in bathrooms or whole building ventilation
• Duct Size: 6″ round
• Collar / Damper: Plastic
• Mounting: Hanger Bars
• Housing: Metal
• Overall Dimensions: 10-7/8” x 9-3/8” x 7-7/8”
• Grille: White, polymeric grill secured in place with torsion springs; easily removed if necessary, dimensions - 11" x 133/4".
• Blower Wheel: Balanced polymeric dual inlet blower wheel 5-13/32" dia. x 4" depth, 30 paddles, secured in place using 8M hex nut.
• Motor: Enclosed 4 pole electronically balanced permanently split capacitor motor (PSC); life time lubrication, suitable for continuous operation.
• Motor bearings: Ball.
• Voltage Rating: 115/120 volts, 60 Hz.
• Fan Housing: 23 gauge galvanized steel housing.
• Duct Collar: Plastic collar for 6" duct connection, comes complete with built in non-metallic back draft damper for quiet operation.
• Humidity Sensor: Integrated humidity sensor automatically turns fan on until the desired humidity level is reached. Humidity set points up to 80%.
• Ventilating Area: For bathrooms up to 100 sq. ft. For other rooms up to 125 sq. ft.
• Electrical Connections: 1/2" electrical knockouts provided. Easy wiring access via either internal or external wiring compartment cover.
• Unit Mounting: The housing will mount in ceilings with at least 8" of clearance and through drywall thickness up to 3/4", with a rough-in opening of 11" x 9-1/2". The housing will mount either between 16" or 24" on center joists, using the 4 supplied housing mounting rails. The housing mounting rails can be adapted for overhead mounting (hardware not provided).

INCLUDES

• Ventilation Fan Housing with Integrated Humidistat
• Blower (motor)
• Hanger Bars for Mounting
• Damper and Duct Collar
• Grille
• User Manual
