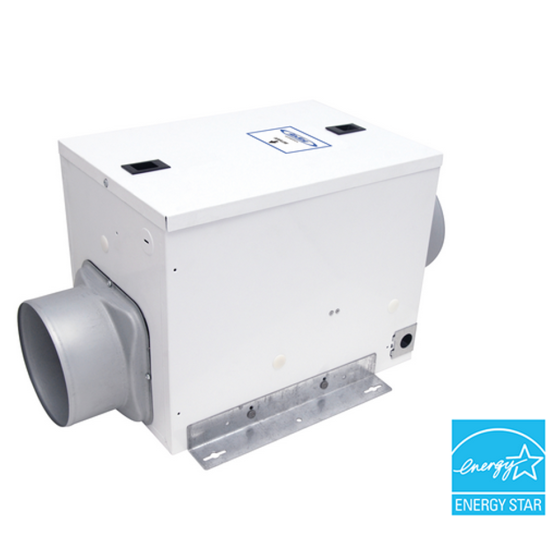

The Air King QFAMD Fresh Air Machine offers home builders and developers a cost effective mechanical fresh air solution that helps with humidity and temperature. Contractors and builders now have a practical offering for introducing constant fresh air from outside into the residence, meeting the fresh air CFM requirements. Internally mounted sensors provide limits preventing the intake of outdoor air that is too humid, too hot, too cold or too dry. The operator simply dials in the quantity (CFM) of fresh air needed from the quiet energy efficient fan and sets the desired intake levels for the outside humidity and temperature. In addition, the QFAMD offers one of the industry’s highest efficiency ratings for air intake products, is ENERGY STAR® certified as well as being recognized as an ENERGY STAR® Most Efficient 2023 product.
COMPLIANT
• Excellent ASHRAE 62.2 solution for fresh air (learn more)
• ENERGY STAR® Certified
• HVI Certified performance
• ETL listed
QFAMD FRESH AIR MACHINE FEATURES
• Nearly silent operation, homeowner may not even know it is operating
• 4 pole ECM motor, permanently lubricated, thermally protected
• Programmable to prevent temperature & humidity extremes
• Accepts up to a MERV16 10″ x 10″ x 2″ filter through easy access filter door
• Unit mounted “off” switch
• Durable white epoxy finish
SPECIFICATIONS
• CFM Settings @ 0.2″ SP: Variable 30 – 130
• Motor: 4 Pole ECM
• Sound Level: Very Quiet
• Maximum Fan Watts: 26.0
• ASHRAE 62.2 Ventilation: Fresh Air Supply
• ENERGY STAR® certified: Yes
• Can be used to Comply with California Title 24 requirements: N/A
• CALGreen: N/A
• Duct Size: 6″ round
• Collar: Metal
• Mounting: Mounting Bracket
• Housing: Metal
Blower Wheel
• Balanced polymeric dual inlet blower wheel secured in place using a hex nut.
Adjustable Capacity Motor
• Variable capacity settings allow the fan to be set from 30 to 130 CFM
• 0.5" electrical access. Easy wiring access via external wiring compartment cover or internal access plate.
Unit Mounting
• Designed to surface mount to a wall or ceiling with the included mounting brackets. Can be mounted onto joists, studs or the housing mounting brackets can be adapted for overhead mounting (hardware not provided).
Optional Air Filter
• An optional 10" x 10" x 2" air filter can be added to the unit (not included).
Test Port
• Allows easy air flow measurement with Pitot tube or similar device.
