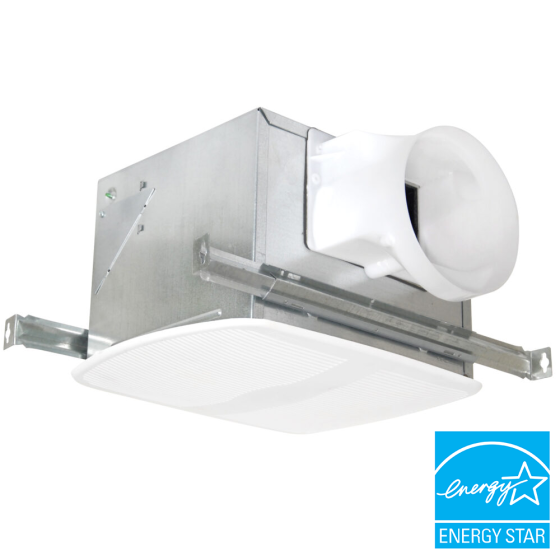

Air King’s ENERGY STAR® certified deluxe quiet exhaust fans provide quiet and effective ventilation for your bathroom, laundry room or other areas of the home needing ventilation. The energy efficient motor is suitable for continuous operation and can be used to comply with ASHRAE 62.2 standards. The unit easily installs using the included adjustable hanging brackets and the 6 inch round plastic duct connector with damper protects against backdrafts and ensures quiet operation. The white, low profile plastic grill is unobtrusive and complements almost all decors. A side access panel allows you to wire the fan from inside or outside the housing. The exhaust fans are UL listed for installation over a tub or shower on a GFCI circuit and are HVI Certified.
Excellent ASHRAE 62.2 solution ENERGY STAR® certified Can be used to comply with California Title 24 requirements Can be used to comply with the ventilation standards required by LEED for Homes
• ENERGY STAR® Certified deluxe quiet exhaust fans easily install using the included adjustable hanging brackets.
• UL listed for installation over a tub or shower on a GFCI circuit.
• 6 inch round duct connector with damper protects against backdrafts and ensures quiet operation.
• Side access panel allows you to wire the fan from inside or outside the housing.
• HVI Certified performance.
• CFM @ .1 SP: 110
• CFM @ .25 SP: 99
• Sones @ .1 SP: 1.4
• Sound Level: Quiet
• Watts: 29.0
• Effective Ventilation Area: 110 to 135 sq. ft.
• ASHRAE 62.2: Local
• ENERGY STAR® certified: YES
• Can be used to Comply with California Title 24 requirements: YES
• CALGreen: Rooms other than bathrooms
• Duct Size: 6″ round
• Collar / Damper: Plastic
• Mounting: Hanger Bars
• Housing: Metal
SPECIFICATIONS
GRILLE
• White, polymeric grill secured in place with torsion springs; easily removed if necessary, dimensions - 11" x 133/4".
BLOWER WHEEL
• Balanced polymeric dual inlet blower wheel 513/32" dia. x 4" depth, 30 paddles, secured in place using 8M hex nut.
MOTOR
• Enclosed 4 pole electronically balanced permanently split capacitor motor (PSC); life time lubrication, suitable for continuous operation.
• Motor bearings - ball.
• Rated 115/120 volts, 60 Hz.
FAN HOUSING
• 23 gauge galvanized steel housing.
• Overall dimensions 10-7/8" x 9-3/8" x 7-7/8".
DUCT COLLAR
• Plastic collar for 6" duct connection, comes complete with built in non-metallic back draft damper for quiet operation.
VENTILATION AREA
• For bathrooms up to 110 sq. ft. For other rooms up to 135 sq. ft.
ELECTRICAL CONNECTIONS
• 1/2" electrical knockouts provided. Easy wiring access via either internal or external wiring compartment cover.
