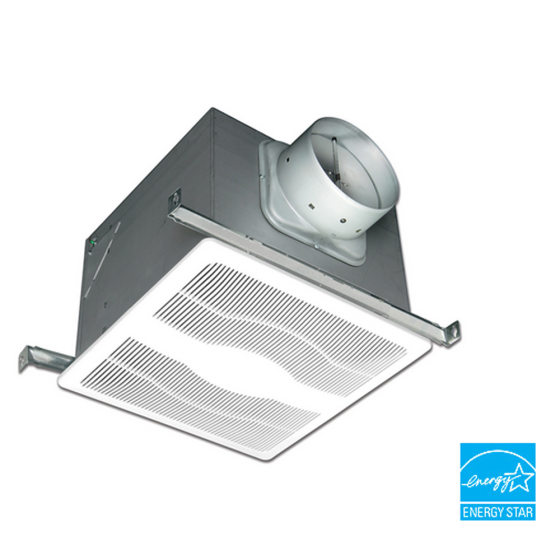

Air King® ENERGY STAR® Certified Humidity Sensing Exhaust Fan 6" Round Duct, 80CFM, 0.3 Sones, 120Vac

FEATURES

Air King’s ENERGY STAR® certified ECO humidity sensing exhaust fans provide efficient and effective ventilation at barely audible sound levels for bathrooms, laundry rooms and other areas of your home needing ventilation. The integrated humidistat senses the humidity level of the room and turns the fan on until the humidity level is below the preset percentage. Humidity level can be set up to 80% relative humidity. The energy efficient motor is suitable for continuous operation and can be used to comply with ASHRAE 62.2 standards. The unit easily installs using the included adjustable hanging brackets and the 6 inch round metal duct connector with gasketed damper protects against backdrafts and seals the duct better than any other damper on the market today. The white, low profile plastic grill is unobtrusive and complements almost all decors. A side access panel allows you to wire the fan from inside or outside the housing. The ECO humidity sensing exhaust fans are UL listed for installation over a tub or shower on a GFCI circuit are HVI Certified, and can be used to comply with CALGreen.

SPECIFICATIONS

• CFM @ .1 SP: 80

• CFM @ .25 SP (Boost): 84

• Sones @ .1 SP: <0.3

• Boost Speed (CFM/Sones) @ .1 SP: 110 / 0.7

• Sound Level: Very Quiet

• Maximum Power Watts: 37.0

• Effective Ventilation Area: 80 to 100 sq. ft.

• ASHRAE 62.2 Ventilation: Whole House/ Local

• ENERGY STAR® certified: YES

• Can be used to Comply with California Title 24 requirements: YES

• CALGreen: Compliant for use in bathrooms or whole building ventilation

• Duct Size: 6″ round

• Collar / Damper: Metal

• Mounting: Hanger Bars

• Housing: Metal

Grille
White, polymeric grill secured in place with torsion springs; easily removed if necessary, dimensions – 14 7/16" x 14 7/16".

Blower Wheel
Balanced polymeric dual inlet blower wheel secured in place using a hex nut.

Motor
Enclosed 4 pole high efficiency, permanently split capacitor motor (PSC); life time lubrication, suitable for continuous operation. Motor bearings - ball. Rated 115/120 volts, 60 Hz.

Fan Housing
23 gauge galvanized steel housing.
Overall dimensions: 12 7/8"x 12 3/4"x 9 7/8".

Humidity Sensor
Integrated humidity sensor automatically turns fan on until the desired humidity level is reached.

Duct Collar
6" round, zinc plated metal collar adapter. Gasketed, spring loaded aluminum backdraft damper.

Electrical Connections
1/2" electrical knockouts provided. Easy wiring access via either internal or external wiring compartment cover.

INCLUDES

• Exhaust Fan Housing with Integrated Humidistat

• Blower (motor)

• Hanger Bars for Mounting

• Damper and Duct Collar

• Grille

• User Manual

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	15
Exterior Dimensions (D) (inches)	20.000000
Exterior Dimensions (W) (inches)	16.000000
Exterior Dimensions (H) (inches)	12.000000
Shipping Weight (lbs)	15.000000

Specification
CFM	80

Resources

ES80SH_Installation.pdf

ES80SH_Specifications.pdf
