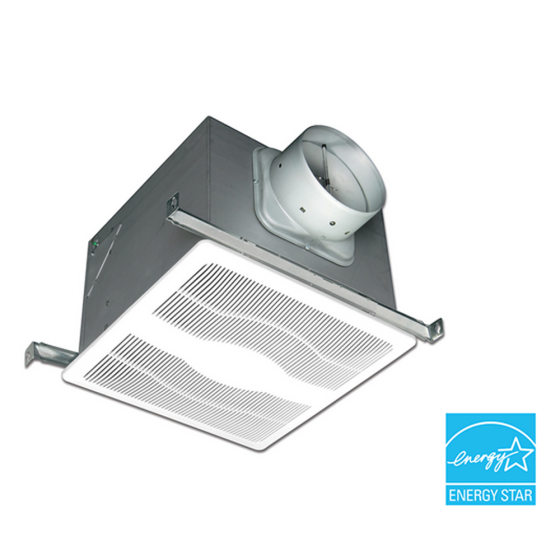

Air King’s ENERGY STAR® certified variable speed ECO humidity sensing exhaust fans provide barely audible sound levels, effective and efficient automated ventilation.
Excellent ASHRAE 62.2 solution
ENERGY STAR® certified
Can be used to comply with California Title 24 requirements as well as CALGreen
Can be used to comply with the ventilation standards required by LEED for Homes
Integrated humidistat senses the humidity level of the room and turns the fan on until the humidity level is below the preset percentage. Humidity level can be set up to 80% relative humidity.
8 capacity settings on low speed allow the fan to be set to the required exhaust rate for continuous ventilation. Low speed set points include: 30, 40, 50, 60, 70, 90, 100 & 120 CFM High-speed rapidly clears the air of moisture, odors or other contaminants. High-speed set points include: 80, 110, 130 CFM & Boost Variable speed ECO humidity sensing exhaust fans easily install using the included adjustable hanging brackets.
UL listed for installation over a tub or shower on a GFCI circuit.
6″ round duct connector with gasketed damper protects against backdrafts and seals the duct better than any other damper on the market today.
Side access panel allows you to wire the fan from inside or outside the housing.
• Can be used to Comply with California Title 24 requirements: YES
• CALGreen: Compliant for use in bathrooms or whole building ventilation
• Duct Size: 6″ round
• Collar / Damper: Metal
• Mounting: Hanger Bars
• Housing: Metal
Grille
• White, polymeric grill secured in place with torsion springs; easily removed if necessary, dimensions – 14 1/4" x 14 1/4".
Blower Wheel
• Balanced polymeric dual inlet blower wheel secured in place using a hex nut.
• Adjustable Capacity Motor
• 8 capacity settings on low speed allow the fan to be set to the required exhaust rate for continuous ventilation. Low speed set points include: 30 40 50 60 70 90 100 & 120 CFM
• High speed rapidly clears the air of moisture, odors or other contaminants. High speed set points include: 80 110 130 Boost
• Quiet 4 Pole motor, suitable for continuous operation, permanently lubricated, 115/120V 60 Hz., 0.30 amps. Ideal for compliance with Ashrae 62.2, LEED, ENERGY STAR ® for Homes, California Title 24 and other programs.
Humidity Sensor
• Integrated humidity sensor, adjustable up to 80% RH automatically turns fan to high speed until humidity drops to the desired set point.
