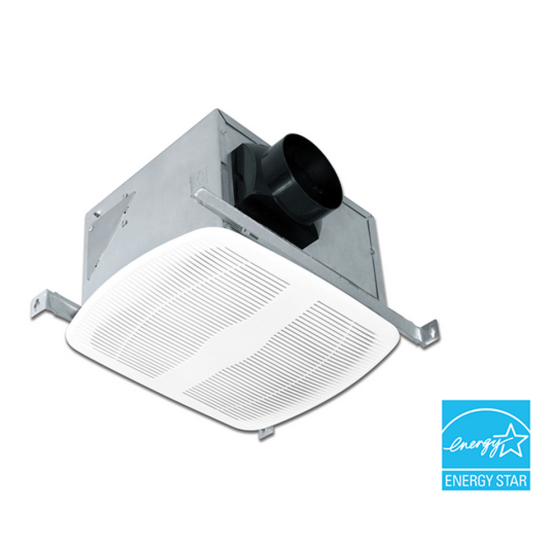

Air King® ENERGY STAR® Certified Exhaust Fan 4" Round Duct, 50CFM, 0.5 Sones, 120Vac

FEATURES

Air King’s ENERGY STAR® certified AK series exhaust fans provide quiet and effective ventilation for your bathroom, laundry room or other areas of the home needing ventilation. The energy efficient motor provides effective ventilation and is permanently lubricated for little to no maintenance. The unit easily installs using the included adjustable hanging brackets and the 4 inch round plastic duct connector with damper protects against backdrafts and ensures quiet operation. The white, low profile plastic grill is unobtrusive and complements almost all decors. A side access panel allows you to wire the fan from inside or outside the housing. The exhaust fans are UL listed for installation over a tub or shower on a GFCI circuit and are HVI Certified.

• ENERGY STAR® certified exhaust fans

• Excellent ASHRAE 62.2 solution

• Can be used to comply with California Title 24 requirements

• Can be used to comply with the ventilation standards required by LEED for Homes

• Easily installs using the included adjustable hanging brackets.

• UL listed for installation over a tub or shower on a GFCI circuit.

• 4 inch round duct connector with damper protects against backdrafts and ensures quiet exhaust fan operation.

• Side access panel allows you to wire the fan from inside or outside the housing.

• HVI Certified performance.

SPECIFICATIONS

• Grille

White, polymeric grill secured in place with torsion springs; easily removed, if necessary, dimensions 11" x 13 3/4 ".

• Blower Wheel

One piece polymeric centrifugal blower wheel, 5 7/32" diameter, 2 29/32" wide, with 30 paddles.

• Motor

Heavy duty, permanently split capacitor, plug-in, 4 pole motor, life time lubrication, suitable for continuous operation. Rated 120 volts, 60 hz.

• Fan Housing

23 gauge galvanized steel housing. Dimensions: 10 7/8 " x 9 3/8"x 7 7/8 ".

• Duct Collar

Plastic collar for 4" duct connection, comes complete with built in non-metallic back draft damper for quiet operation.

• Ventilating Area

For bathrooms up to 50 sq. ft. For other rooms up to 60 sq. ft.

• Electrical Connections

1/2 " electrical knockouts provided.

• CFM @ .1 SP: 50

• CFM @ .25 SP (High-speed): 40

• Sones @ .1 SP: 0.5

• Sound Level: Very Quiet

• Watts: 14.5

• Effective Ventilation Area: 50 to 60 sq. ft.

• ASHRAE 62.2 Ventilation: Whole House/ Local

• ENERGY STAR® certified: YES

• Can be used to Comply with California Title 24 requirements: YES

• CALGreen: Rooms other than bathrooms

• Duct Size: 4″ round

• Collar / Damper: Plastic

• Mounting: Hanger Bars

• Housing: Metal

INCLUDES

• Exhaust Fan Housing

• Blower (motor)

• Hanger Bars for Mounting

• Damper and Duct Collar

• Grille

• User Manual
