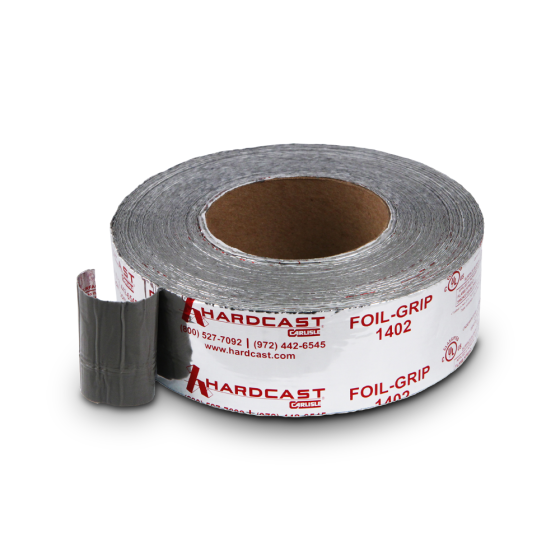

Hardcast® Foil-Grip™ 1402 Indoor/Outdoor Rolled Mastic Sealant Tape 3", 33 Yards, 17 mil (Aluminum)

Item
AFG1402-3
  • California Prop 65

APPLICATIONS

Foil-Grip 1402 is a pressure-sensitive, 40-year cycle, duct joint and general purpose rolled mastic sealant. It provides an instant water-resistant air-tight grip to most surfaces including sheet metal, flex duct, and PVC-coated duct. Foil-Grip 1402 is suitable for subgrade application on PVC-coated duct and is ideal for replacement applications.

FEATURES & BENEFITS

• Instant Adhesion
• Indoor/Outdoor
• True Zero VOC
• Metal & Subgrade PVC Ductwork
• All Pressure Classes Up To 20 inches W.C.
• Color: Mil Finish Aluminum Printed/Non-Printed With Gray Butyl Sealant
• Backing: 2 mils Aluminum
• Thickness: ASTM D3652 17 mils nominal
• Peel Strength: ASTM D3330-83 >10 lbs./linear inch
• Tensile Strength: ASTM D412 955 psi avg.
• Elongation: ASTM D412 500%
• Flexibility: ASTM C765 Excellent/No Cracking
• Water Resistance: CSTM. RA 8.0 Pass
• VOC: EPA Method # 2 0 g/l
• Flame: ASTM E84/UL 723 20
• Smoke ASTM E84/UL 723 40
• Service Temperature: ASTM D2485/D2243 -20°F to 200°F (-28.8°C to 93.3°C)
• Pressure Test: Independent 24 Hour Test up to 5/8-inch Diameter 20 inch w.c.
• Weather Resistance: ASTM G53 Passes 2,000 QUV
• Bond Time: Immediate/Full Bond - 15 Minutes
• UL Rating: UL 723 Passes/Classified
• VOC Limitation: SCAQMD Rule 1168 Pass
• NFPA: 90A & 90B Class 1

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 3.26
Exterior Dimensions (D) (inches) 6.500000
Exterior Dimensions (W) (inches) 6.500000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 3.500000
