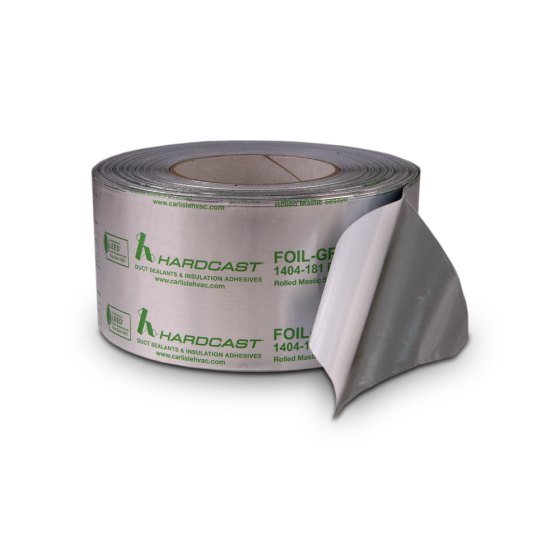

Hardcast® Foil-Grip™ 1404-181BFX Indoor/Outdoor Rolled Mastic Sealant Tape 2", 33 Yards, 17 mil (Aluminum)

Item
AFG-1404-181-BFX-2
  • California Prop 65

APPLICATIONS

Foil-Grip 1404-181BFX is a UL 181B-FX listed pressures sensitive rolled mastic sealant. The Foil-Grip 1404-181BFX has superior tack for instant grab strength to galvanized metal, flex duct, PVC coated pipe, and PVC coated ductwork for an immediate airtight bond. The foil facer/butyl adhesive composite provides excellent UV resistance coupled with outstanding water resistance. The easy tear provides a fast installation for airtight seals on above and below grade ductwork application.

FEATURES & BENEFITS

• Color: Mil Finish Aluminum Printed With Gray Butyl Sealant Backing Visual 2 mil Aluminum
• Thickness: ASTM D3652 17 mils nominal
• Peel Strength ASTM D3330-83 >10 lbs./linear inch
• Tensile Strength ASTM D412 20 pli/1400 psi avg.
• Elongation ASTM D412 560%
• Flexibility: ASTM C765 Excellent/No Cracking
• Water Resistance: CSTM. RA 8.0 Pass
• VOC: EPA Method # 2 0 g/l
• Flame/Smoke ASTM E84/UL 723 5/25
• Service Temperature ASTM D2485/D2243 -20°F to 200°F (-28.8°C to 93.3°C)
• Pressure Test: Independent 24 Hour Test up to 5/8-inch Diameter 30 inch w.c.
• Weather Resistance: ASTM G53 Passes 2,000 QUV
• Bond Time: Immediate/Full Bond: 15 Minutes
• UL 181B-FX: UL 181 tested Passes/Listed
• NFPA 90A & 90B Class 1

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 2.5
Exterior Dimensions (D) (inches) 6.400000
Exterior Dimensions (W) (inches) 6.400000
Exterior Dimensions (H) (inches) 4.000000
Shipping Weight (lbs) 2.500000
