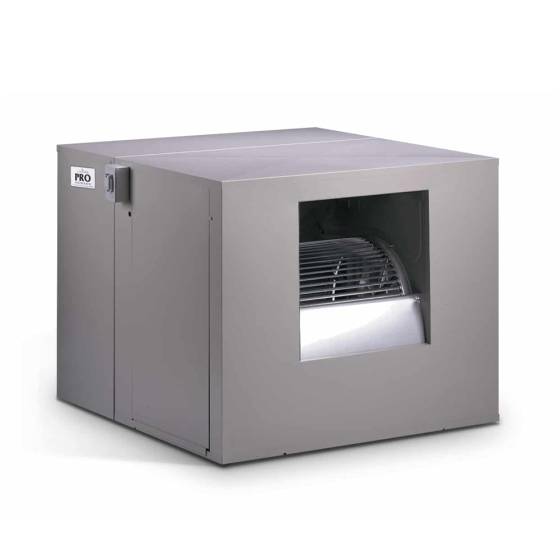

AeroCool® Pro Residential Evaporative Cooler, Side-Discharge, up to 4,135 CFM, 120Vac

Item
PH6803
  • California Prop 65

APPLICATIONS

Set the comfort level for you and your family and the AeroCool Pro-Series evaporative air cooler does the rest. Combined with the Pro-Stat programmable thermostat, the AeroCool Pro-Series will automatically and efficiently operate the equipment to best maintain your comfort level while using the least amount of energy.

The AeroCool Pro Series features the Pro-4×4 High Efficiency Media to provide the coolest air possible while employing the Pro-Clean System to help maintain the entire system. The AeroCool Pro Series and its integrated systems work hard to help bring together both performance and efficiency while providing worry-free reliability.

The Pro-Clean System maintains the cleanliness of your evaporative cooler by automatically draining the cooler and refilling with fresh clean water, thus avoiding scale build-up. The water used in the evaporative process is stored in-side the fully encapsulated Pro-Armor wet section. The AeroCool® Pro-Series includes the Pro-Shield weatherizing panel for use in the off-season to prohibit heat loss and unwanted air from entering the home during colder months. Defending the media from the elements of winter can also extend the life of your unit.

FEATURES & BENEFITS

• Maximum CFM: 4,135 @ 0.2 Static Pressure (4,430 @ 0.0 Static Pressure)
• High quality architectural grade Peblar XT® finish
• Pro-Armor: The premier single inlet cooler with polymeric inner structure that completely shields the wet section from corrosive interaction.
• Pro-Series thermostat for fully automatic control.
• Pro Clean System provides sump dump pump for cyclic dumping of sump water, keeping the cooler free of harmful mineral build up.
• Galvanized sheet steel is zinc coated at weights rated G40 or G90
• These units are equipped with High Efficiency Rigid Media pads. Evaporative media is corrugated cellulose material, impregnated with insoluble anti-rot salts and rigidifying saturates.
• Bearings have an L10 bearing life of 39,000 hours
• Electrical service knockouts are 1/2".
• Water supply line is 1/4" O.D. on both sides.
• Bottom pan drain is 3/4" male hose thread.
• UL Classified Evaporative Air Cooler, in accordance with the Uniform Mechanical Code. NOTE: in order to maintain the UL Classified designation, these models must be installed with PMI motor kits and pumps
• All models ship with pump and motor installed.
• Pro-Shield weatherizing panel inhibits heat loss and cold air from entering your home during the off season.

Specification
Discharge Orientation Side-Discharge
Maximum CFM 4,135
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 217
Exterior Dimensions (D) (inches) 42.000000
Exterior Dimensions (W) (inches) 42.000000
Exterior Dimensions (H) (inches) 35.000000
Shipping Weight (lbs) 217.000000
