ADP PL-Series Cased A-Coil Horizontal Plenum Cabinet

Grouped product items
Product Name
ADP 3 Ton, 35" Horizontal Plenum Coil with TXV, P44 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL36H145P44935
ADP 3 Ton, 35" Horizontal Plenum Coil with TXV, P14 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL36H175P14935
ADP 3 Ton, 35" Horizontal Plenum Coil with TXV, P15 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL36H175P15935
ADP 3 Ton, 35" Horizontal Plenum Coil with TXV, P45 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL36H175P45935
ADP 3 Ton, 35" Horizontal Plenum Coil with TXV, P29 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL36H210P29935
ADP 3 Ton, 35" Horizontal Plenum Coil with TXV, P74 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL36H210P74935
ADP 4 Ton, 35" Horizontal Plenum Coil with TXV, P15 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL48H175P15935
ADP 4 Ton, 35" Horizontal Plenum Coil with TXV, P78 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL48H175P78935
ADP 4 Ton, 35" Horizontal Plenum Coil with TXV, P75 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL48H210P75935
ADP 5 Ton, 35" Horizontal Plenum Coil with TXV, P17 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL60H210P17935
ADP 5 Ton, 35" Horizontal Plenum Coil with TXV, P19 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL60H210P19935
ADP 5 Ton, 35" Horizontal Plenum Coil with TXV, P29 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL60H210P29935
ADP 5 Ton, 40" Horizontal Plenum Coil with TXV, P30 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL60H210P30940
ADP 5 Ton, 35" Horizontal Plenum Coil with TXV, P52 Coil, Aluminum Slab, Non-Bleed TXV MFR: Item: PL60H210P52935

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

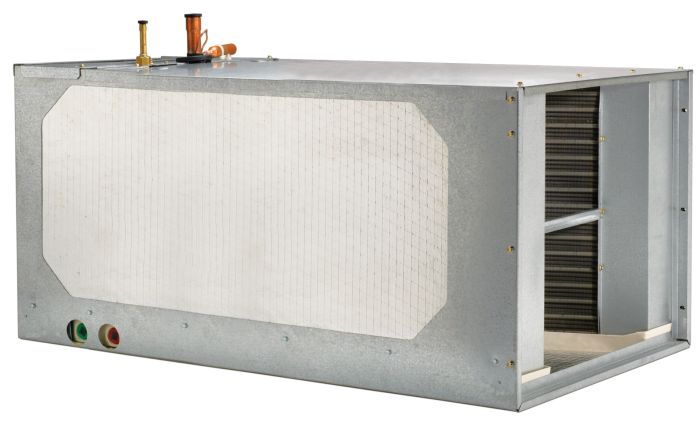

Product Features:
· Short cabinet with easy access.
· High efficiency lanced fin design.
· R-410A threaded TXV installed.
· Copper refrigerant connections for easy brazing on both copper and aluminum slab models.
· Dual 3/4" FPT condensate drains on front and back of coil allows flexibility of placement to accommodate left or right airflow furnaces.
· Easy to remove access panel with only 4 screws.
· Non-captive panels allow access to inside of cabinet without the need to cut refrigerant lines.
· Refrigerant connections on top of coil.
· Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air.
· Copper distributor tube assembly provides brass to brass threads for trouble-free service of TXV.
· Heavy gauge painted cabinets fully lined with 5/8" foil faced insulation.
· All coils are foam packed and include bar coding on label.
· Easy to use filler strip, for use if coil dimensions are larger than furnace.
· Dedicated cutouts for condensate drains reduce air leakage.
· Intertek lab tested 1% or less cabinet air leakage for better efficiency.
· Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan.
· HydroTEC™ low water retention drain pan.
· UV resistant drain pans are molded of high temperature (450 deg. F) engineered polymer.
· Refrigerant connections are 3/8" ODF liquid and 7/8" ODF suction.
· Refrigerant connections in center of coil away from airflow path.
