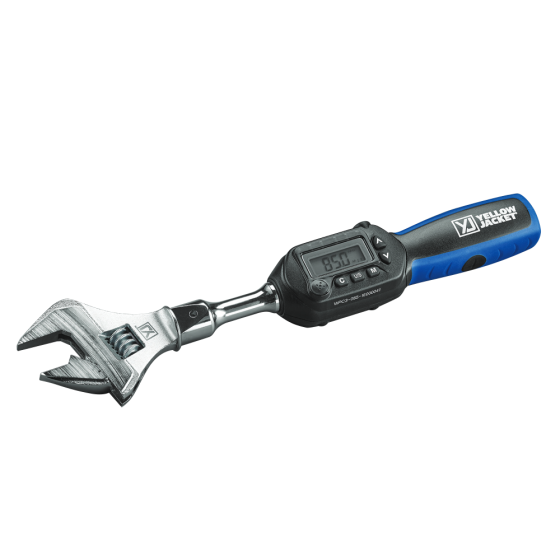

Yellow Jacket® Digital Adjustable Torque Wrench
Item
60648
FEATURES
The YELLOW JACKET® Digital Adjustable Torque Wrench has 9 common preset torque values, which display on the digital screen as the flare nut is tightened. For added assurance, indicator lights increase as the torque value is approached. With adjustable wrench heads, you can leave your other wrenches at home. The protective carrying case keeps it safe as you carry it from job site to job site.
• Interchangeable heads• Digital torque value readout
• +/- 2% accuracy
• CW and CCW operation
• Peak hold and track mode selectable
• Buzzer and LED indicator for 9 pre-set target torques
• Four user selectable units of measure (ft. lb., in. lb., N-m, kg-cm)
• 50 data memory for recall and joint torque auditing
• Auto sleep (after about five minutes idle)
• Water contact indicator
• Two AAA batteries included
SPECIFICATIONS
• Guaranteed Accuracy Range:12.5 - 62.7 ft. lb. (17 - 85 N-m) 150 - 752 in. lb. (173 - 867 kg-cm)• Accuracy: CW: ±2%; CCW: ±3%
• Data Memory Size: 50
• Pre-Sets: 9
• LED Indicators: 6 (1 red, 5 green)
• Operation Mode: Peak hold/track
• Unit Selection: ft. lb., in. lb., N-m, kg-cm
• Gear Teeth: 52
• Head Open Size: .2 - 1.18 inches (5 - 30 mm)
• Battery Type: Two AAA (non-rechargeable)
• Operating Temperature: 14°F ~ 140°F (-10°C ~ 60°C)
• Storage Temperature: 4°F ~ 158°F (-20°C ~ 70°C)
• Humidity: Up to 90% non-condensing
• Drop Test: 1 m
• Vibration Test: 10 g
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 19.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 4.000000 |
