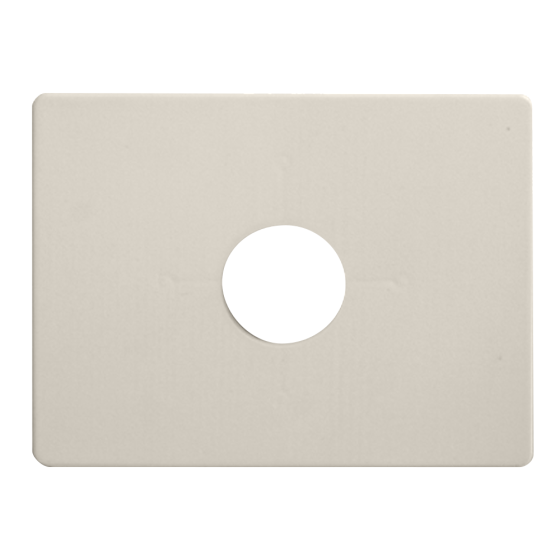

Adapter Plate 5.25" x 7" (Cloud White)

Item
ADP-525-7-CDW
  • California Prop 65

FEATURES

BAPI Adaptor Plates is designed to cover wall imperfections when installing wall sensors or thermostats. They are made in different sizes and colors to meet the need to cover different wall imperfections or holes as well as sensor size. Each size is made in three different colors (Bright White, Off White and Cloud White) to match the sensor or thermostat for a professional looking installation. Each can be painted or wall papered in place if architecturally required.


SPECIFICATIONS

  • • Material: ABS plastic, Flame-retardant, UL 94, V-0
  • • Application: Horizontal or Vertical
  • • Mounting: Drywall, US back box or European back box
  • • Color Match
    • ○ BW, Bright White: BAPI-Stat “Quantum” and “Quantum Prime” Room Units (Approx. Pantone Bright White) also Delta and BAPI-Stat 4 Units purchased after 2020
      ○ OFW, Off White: BAPI-Stat 3 (Approx. Pantone Warm Gray 1)
      ○ CDW, Cloud White: Delta, BAPI-Stat 4 (Approx. Pantone Cool Gray 1)
  • • Holes: Center wire-way hole 1.67” diameter
  • • Surface: Textured face, Mold-tech spec M11040
  • • Paintable: Field applied, Latex recommended if needed
  • Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) .25
    Exterior Dimensions (D) (inches) 1.000000
    Exterior Dimensions (W) (inches) 7.000000
    Exterior Dimensions (H) (inches) 5.000000
    Shipping Weight (lbs) 0.250000
