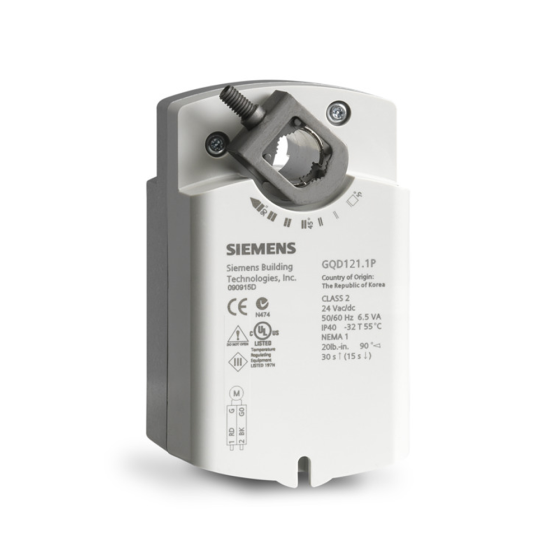

Damper Actuator 24V, Spring Return

APPLICATIONS

The small footprint and torque make this actuator ideal for small HVAC dampers, economizer units, or residential zone dampers requiring fail safe operation.

FEATURES & BENEFITS

• The OpenAir GQD Series direct-coupled, spring return electronic damper actuators are 24 Vac/dc and 120 Vac rated and available in 2-position, floating and 2 to 10 Vdc control.
• Operating Voltage: 24 Vac/dc ±20%
• Frequency: 50/60 Hz
• Power Consumption: Running - 6.5 VA (4.5 W), Holding - 4 VA (2.5 W)
• Torque: 20 lb.-in. (2 Nm)
• Runtime for 90°: 30 sec.
• Spring Return: 15 sec. nominal
• Nominal Angle of Rotation: 90°
• Dual Auxiliary Switches: Fixed at 5° and 85°
AC Rating: 24 to 250 Vac, AC 6A resistive, AC 2A General Purpose
DC Rating (Standard/Plenum Cable): 12 to 30 Vdc, DC 2A
• Shaft Size: 3/8 to 1/2-in. (8 to 13.4 mm) round/square
• Min. Shaft Length: 3/4-in (20 mm)
• Conduit Connection: (GQD221.1U only) 1/2" NPT
• Housing Enclosure: NEMA 1
• Material: Plenum rated rugged plastic
• Ambient Temperatures
Operating: -25° to 130°F (-32° to 55°C)
Storage and Transport: -40° to 158°F (-40° to 70°C)
• Ambient Humidity: 95% RH, non-condensing
• Agency Approvals: UL873, cUL, CE rated
• Pre-Cabled Connection: AWG 18
• Cable Length: 3 ft. (0.9m)
• Bi-directional, fail-safe spring return
• Modulating actuators contain built-in feedback
• Pre-cabled
• Plenum rated
• Signal inversion capability on modulating type (2 to 10 Vdc/10 to 2 Vdc)
• Small footprint for installation flexibility
• UL, cUL, CE rated
• Quiet operation
