Act Net Communicating Damper Actuator for TruVu™ Controllers
APPLICATIONS
The TruVu damper kit is used in conjunction with a TruVu controller in HVAC systems to control dampers. By utilizing an Act Net communication signal, the actuator places the damper at any point between fully open and fully closed. A critical element of an HVAC system, proper actuators ensure that zone dampers function properly and air flows properly to the zone.
FEATURES & BENEFITS
• 45 inch-pound (5 Nm) torque rating that can be mounted up to a maximum distance of 300 feet from the controller
• Brushless DC motor with overload protection provides reliable operation
• Connects seamlessly to TruVu controllers via the Act Net port (up to 5 devices)
• Receives power and control communication from the TruVu controllers

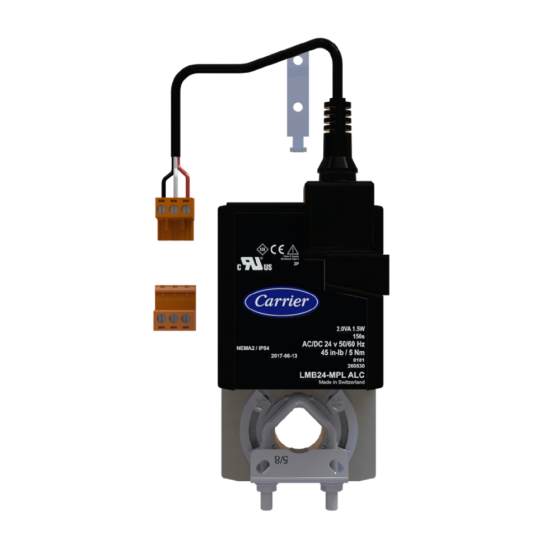

INCLUDES
• 1 Actuator Motor assembly with cable and plug
• 1 Universal Mounting Bracket
• 1 Male Act Net connector P/N 130135
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 2.500000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 2.000000 |
