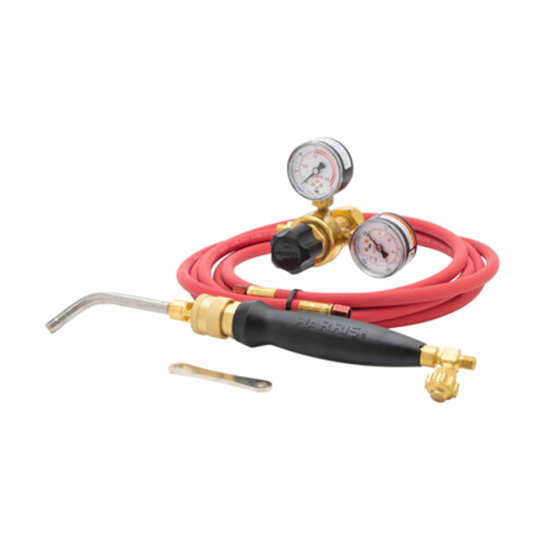

Harris® HX-8B HQA-4 Acetylene Welding Kit (1 Tip)
APPLICATIONS
Model HX-8B HQA-4 Inferno® quick connect kit with “A” hose connections features the revolutionary Inferno® tip with swirl combustion technology. Manufactured to the highest quality in a precision-driven facility, it produces tips with a perfect orifice yielding reliable heat, consistent temperatures and a quality flame with each use. The Inferno® tip is produced using 304 stainless steel tube stock for durability and reliability. The kit includes Harris’ economical Model 601-15-520A fuel gas regulator with 7-year warranty, HQA-4 air-fuel quick connect brazing handle with B tank connections, HA-8i Inferno® brazing tip, 3/16” x 12’ single A&A R-Grade red acetylene hose and an acetylene B-cylinder wrench. All other components have a 1-year warranty.
FEATURES & BENEFITS
• Kit for brazing and soldering using air acetylene and the specially designed Inferno® tip
• Economical Model 601 regulator with easy-to-read, dual scale 50mm plastic gauges and large plastic adjusting knob and "B" tank connection
• The regulators have a one-piece encapsulated seat design with internal filter and PTFE seat to protect them from particulate contamination
• The HQA-4 brazing handle is ergonomically designed with a super tough grip for balance and comfort
• Quick connect "A" hose fittings - 3/8" - 24
• The Inferno® brazing tip included (HA-8i) is constructed of 304 stainless steel tube stock for durability and reliability
• The quality designed Inferno® tips deliver reliable heat, consistent temperature and a quality flame
• Accessories include an acetylene "B" chrome cylinder wrench and 3/16" x 12' red single A&A, Grade "R" acetylene hose
INCLUDES
• Model 601-15-520A Fuel Gas Regulator - 3000408
• Model HQA-4 Air Fuel Torch Handle - 1400084
• Model HA-8i Heating Tip - 1601112
• 3/16" x 12' Single A&A R-Grade Red Acetylene Hose - 4300775
• Acetylene B-Cylinder Wrench - KH231
• Regulator Instructions Sheet - 9500303
• Torch Handle & Tip Instructions Sheet - 9502028
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 6 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 14.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 6.000000 |
