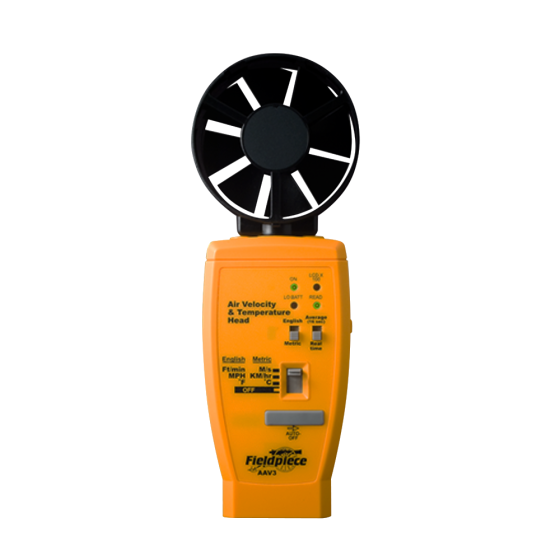

Fieldpiece® Digital Air Velocity and Temperature Accessory Head (Anemometer)

Item
AAV3
  • California Prop 65

APPLICATIONS

The AAV3 is an anemometer accessory head for use with our modular instruments that measures air velocity and temperature in English or Metric units: Ft/min, M/s, MPH, KM/hr, ºF (degrees Fahrenheit) or ºC (degrees Celsius). Multiply your air velocity by the register’s free area to estimate CFM or diagnose duct blockages and quickly check the airflow balance in a conditioned space. Use with our DL3 Data Logger to track airflow or temperature over time. Features average and real time testing modes.

FEATURES & BENEFITS

• Works with any Fieldpiece expandable instrument or handle or any DMM with mVDC ranges and our detachable leads.
• Measures air velocity and measures air temperature.
• Measure in hard to reach areas using detachable test leads.
• Display readings smoothly in average mode or switch to real-time measurement.
• Low battery indicator.
• Auto-power off after 10 minutes (may be disabled).
• Range (wind velocity): 60-5900 Ft/min, 0.7-67.0 mph, 0.3-30.0 M/s, 1-108 KM/hr
• Accuracy (wind velocity): ±3% + 1digit @73ºF ±5ºF (23°C±2°C), <95% relative humidity
• Range (temperature): -20ºC to 60ºC, -4ºF to 140ºF
• Accuracy (temperature):
±1ºF at 32ºF to 113ºF;
±2ºF at -4ºF to 32ºF, 113ºF to 140ºF
(±0.5ºC at 0ºC to 45ºC;
±1ºC at -20ºC to 0ºC, 45ºC to 60ºC)
• Resolution: ±0.1ºF/C
• Operating temperature: 32 to 120 ºF (0-49°C)
• Operating relative humidity: <95%RH
• Storage temperature: -4 to 140ºF (-20 to 60°C), 0 to 80% R.H. with battery removed from meter
• Sensor type: Thermistor temperature sensor
• Battery life: 200 hours typical. No measurable current draw when in “off” position
• Low battery indication: Red LED
• Battery: 9V
• Auto off: Approx. 10 minutes

INCLUDES

• Air Velocity and Temperature Accessory – AAV3
• 9V Alkaline Battery (installed)
• Operator’s Manual

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.05
Exterior Dimensions (D) (inches) 13.500000
Exterior Dimensions (W) (inches) 6.250000
Exterior Dimensions (H) (inches) 2.000000
Shipping Weight (lbs) 1.000000
