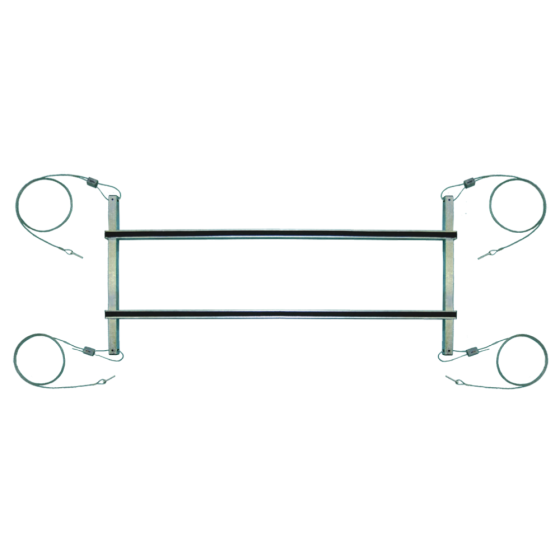

Hung-Rite HVAC Equipment Hanger, 66 in., 400 lbs.

Item
HUNG-RITE
  • California Prop 65

APPLICATIONS

The Hung-Rite HVAC Equipment Hanger is a fully assembled HVAC equipment support unit capable of holding up to a five ton air handler, or a furnace and coil set weighing up to 400 lbs. Unbox, unfold, make your holes, and hang it rite. The hanger utilizes cable locks for quick leveling and is equipped with 3½” bolts for suspension in a variety of places. Hung-Rite’s hanger gives proper support to eliminate equipment buckling and leaves equipment unobstructed for future maintenance. Predrilled holes are located on the arms, for threaded rod during your commercial installations.

FEATURES & BENEFITS

• UL Listed
• Hanger comes fully assembled and ready for installation
• Uses padding to reduce vibration, for quieter equipment operation
• Cable locks allow easy leveling of your equipment
• Hanger is collapsible, and easy to take anywhere
• HVAC contractor designed
• Has separate holes drilled for threaded-rod installations
• Supports up to a 5 ton air handler or furnace & coil weighing up to 400 lbs

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 25
Exterior Dimensions (D) (inches) 96.000000
Exterior Dimensions (W) (inches) 5.000000
Exterior Dimensions (H) (inches) 4.000000
Shipping Weight (lbs) 25.000000
