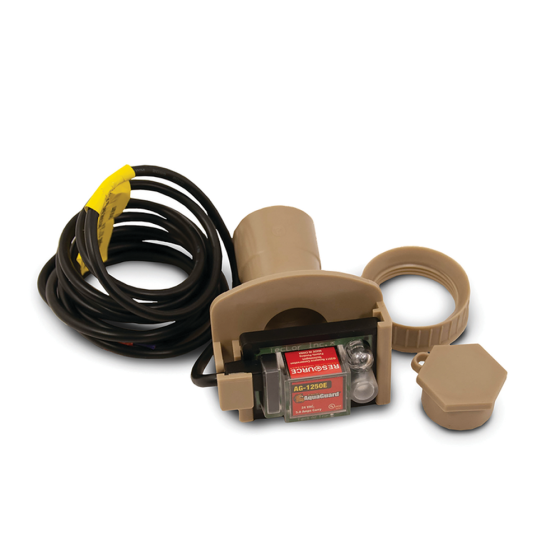

Rectorseal® AquaGuard 4200E Pan Sensor 24Vac
Item
96143
APPLICATIONS
Multipurpose Condensate Overflow Sensor that combines the proven water sensing technology of the AG-1250E with our industry leading Goliath and Titan drain pan line to deliver the ultimate condensate management system.
FEATURES & BENEFITS
• 3/4” PVC threaded male pipe adapter
• 24 VAC, 5 Amp
• 1/4 inch Trigger Depth
• Smart Sensor Technology
• Time Delay: Up to 60 Seconds On
• Controls Normally Open or Normally Closed
• 6’ of Standard Control Wire
• Compact Waterproof Design
• Water Detection LED
• 4th Wire for Alarm
• UL 508 Approved
Electrical | |
---|---|
Voltage | 24 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 4.625000 | Exterior Dimensions (W) (inches) | 4.375000 | Exterior Dimensions (H) (inches) | 2.875000 | Shipping Weight (lbs) | 3.000000 |
