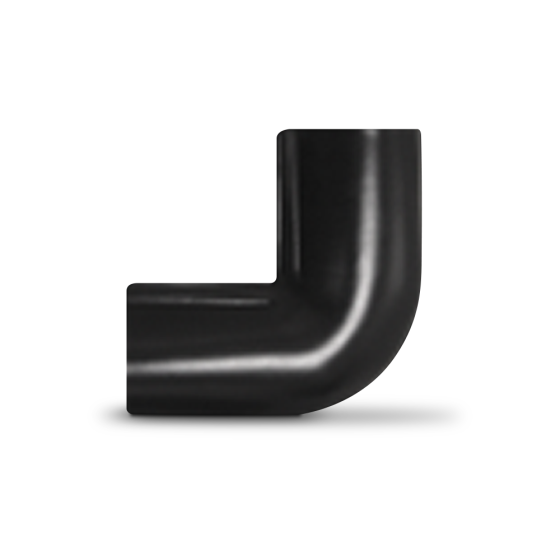

E-FLEX GUARD™ Line Set Cover 90° Angle (3/4" wall thickness pipe insulation with 5/8", 3/4”, 7/8" tube or 1/2" wall thickness pipe insulation with 1-1/8" tube) - (Black)

Item
90C
  • California Prop 65
main product photo

FEATURES

AIREX E-FLEX GUARD™ is a protective cover for HVAC piping exposed to outdoor elements, and it consists of a proprietary vinyl, engineered to ensure durability while performing as a Class II Vapor Retarder to resist moisture damage to insulation and piping. AIREX E-FLEX GUARD™ features chemically and mechanically bonded hook and loop fasteners which are high-temperature welded and double stitched into the vinyl with specially treated nylon, ensuring durability even if cut. Accessories include UV nylon cable ties to secure against tampering. Utilize AIREX E-FLEX GUARD™ to aesthetically meet mandatory building requirements and energy efficiency standards.


  • • Allows moisture to escape while being waterproof on the outside, keeping the insulation intact and preventing corrosion.
  • • Outdoor line set protection from solar radiation, ice, fire, fungus, and more — extending life and performance of outdoor line-sets and insulation.
  • • Meets mandatory building, energy, residential, mechanical, and green codes
  • • Heat and weather-resistant Velcro is molecularly bonded with double stitching to ensure a solid grip, even when removed and reapplied.
  • • Includes UV-resistant nylon cable ties to secure against wind and tampering
  • • Made in the USA
  • • Manufactured to allow cutting to desired length without fraying
  • • Comes in three diameters/widths to accommodate various line-sets
  • • 90° angle fittings available


    • SPECIFICATIONS

  • • Suction Line Insulated: Fits 3/4" wall thickness with 5/8", 3/4”, 7/8" tube
  • • Both Lines Insulated: 1/2” Wall Insulation Thickness
  • • Diameter: 2.38”
  • • Width: 9.5”
    • Specifications
    Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 4
    Exterior Dimensions (D) (inches) 10.000000
    Exterior Dimensions (W) (inches) 10.000000
    Exterior Dimensions (H) (inches) 10.000000
    Shipping Weight (lbs) 4.000000
    Resources
    90C_SDS.pdf
    90C_Submittal.pdf
    90C_Warranty.pdf
