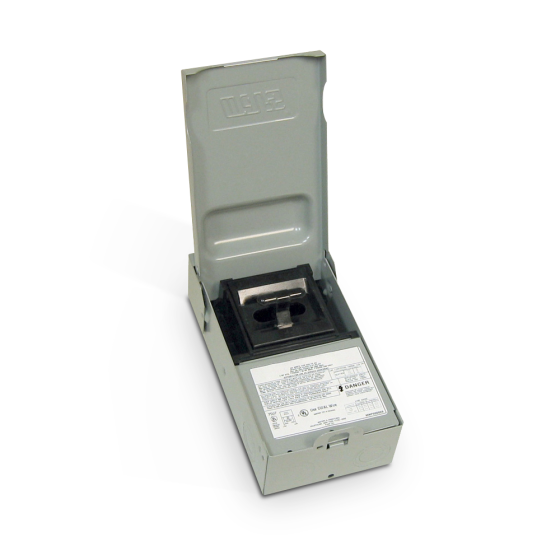

60A Fusible Disconnect 240Vac, 1 Phase, NEMA 3R
Item
83317
FEATURES & BENEFITS
• No. of Poles: 2
• Type: Top Open A/C Disconnect
• Amp Rating: 60 Amp
• Fused or Non-Fused: Fused
• Color: Gray
• Voltage Rating: 240
• Side or Top Open: Top
• Enclosure Material: Steel
• Outlet - GFI: No
• Phase: Single
• Standards: UL
• NEMA Enclosure: NEMA 3R
• Dimensions HxWxD (in.) : 9 x 5 x 2.75
| Electrical | |
|---|---|
| Phase | 1 | Voltage | 240 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3.825 | Exterior Dimensions (D) (inches) | 1.733300 | Exterior Dimensions (W) (inches) | 1.716700 | Exterior Dimensions (H) (inches) | 1.516700 | Shipping Weight (lbs) | 4.000000 |
