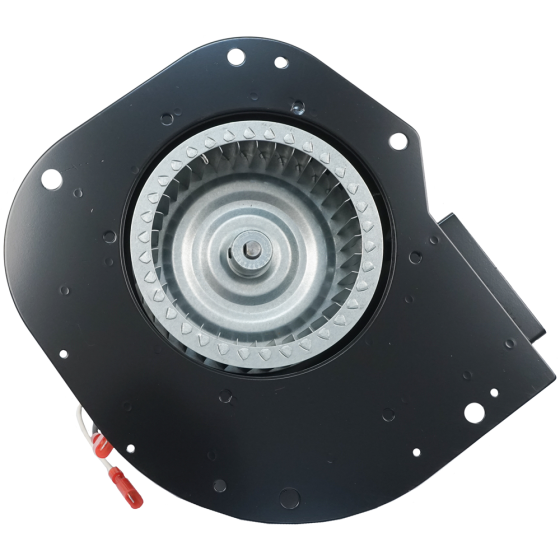

Inducer Motor Kit 1/30HP, 3000RPM, 208/230Vac, 0.16A
Item
82148
FEATURES & BENEFITS
• Voltage: 208 - 230• Phase: Single
• Horsepower: 1/30
• RPM: 3000
• Speeds: 1
• Permanent Split Capacitor
• Mounting Option: Mounting Holes
• Enclosure: Open
• Ambient Temp: 40°C
• Amps: 0.16
• Bearings: Ball
• Brand: Packard
• Certifications: UL, CSA
• Diameter (In.): 3.3
• Hertz: 50/60
• Insulation Class: B
• Material: Metal
• Motor Type: PSC
• NEMA Frame: 3.3
• Overall Length (In.): 7.11
• Overload Protection: AutomaticStatic Pressure 0.1 in.
• Static Pressure 0.2 in: 138
• Watts
• Capacitor Included
INCLUDES
• Mounting HardwareCROSS REFERENCE
• Packard - 82148• Fasco - 7021-10284
• Fasco - 7021-7617
• Fasco - 7021-9237
• Fasco - A148
• Universal - 9446
• Franklin - 8211765065
• ICP - 1054268
• ICP - 1054268P
• ICP - 4MH37
• ICP - 7021-10284
• ICP - 7021-7617
• ICP - 7021-9237
• ICP - 8211765065
• ICP - HQ1054268FA
Electrical | |
---|---|
Voltage | 208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 10.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 5.000000 |
Warranty | |
---|---|
Parts Warranty | 1 Year |
