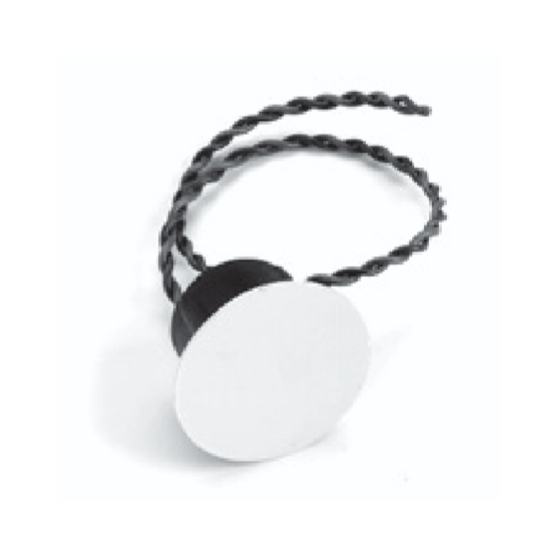

Aprilaire 8051 Indoor Remote Flush Mount Sensor

Item

8051

FEATURES

• Provides a virtually invisible appearance on wall.

• May be painted or wallpapered to match wall.

• Ideal for residential or light commercial applications where customer requires nothing to be seen on the wall.

• 1½" diameter disk. Friction fit in a 1" opening. Air gap of ¼" required.

• Voltage: 24 VAC ±10%

• Resistance: 10 kΩ

• Tolerance: ±3%

• Maximum Wire Length: 300 ft

• Wire Type: 18-24 gauge 2 conductor wire (or more conductors)

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	0.0625
Exterior Dimensions (D) (inches)	5.000000
Exterior Dimensions (W) (inches)	1.500000
Exterior Dimensions (H) (inches)	1.500000
Shipping Weight (lbs)	0.080000
