QuietR® FRK Duct Board 1-1/2 in. x 48 in. x 10 ft.

Item
800FRK11/2
  • California Prop 65

APPLICATIONS

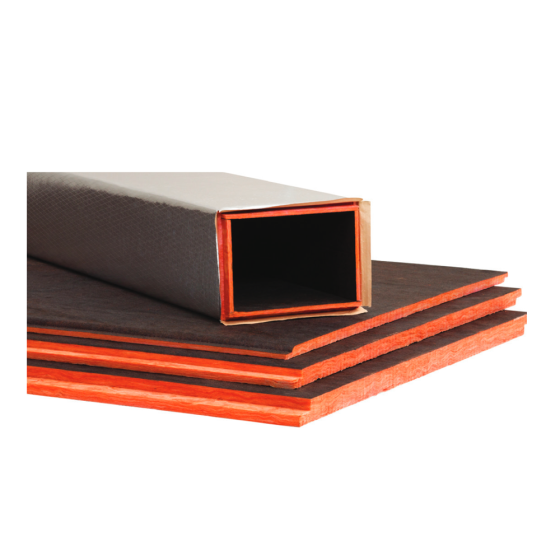

Owens Corning® QuietR® Duct Board is a rigid, resin bonded fibrous glass board with a tough, damage-resistant, flame retardant, reinforced aluminum foil (FRK) facing; with a durable mat air stream surface.

FEATURES & BENEFITS

• Absorbs noise and reduces popping noises caused by expansion, contraction and vibration
• Assured thermal R-value performance
• Bacterial and fungal growth resistant with an EPA registered biocide that helps protect the air stream surface from microbial growth
• Thermal/acoustical insulation board plus jacket forms a single component duct system, thus reducing inspection time
• Lightweight boards are easier to transport and handle than insulated sheet metal ducts
• Virtually eliminates air leakage thus saving energy* and removing the need for system overdesign
• Meets UL 181 Class 1 Air Ducts
• Meets NFPA 90A/90B
• Meets ICC International Mechanical Code, Corps of Engineers Guide Spec.
• Supported by NAIMA and SMACNA industry standards
• Meets requirements of UL 181 and ASTM C 1338 (mold growth), ASTM G 21 (fungi test) and ASTM G 22 (bacteria test)
• Maximum Operating Temperature Limits: UL 181/ULC S110 Internal: 265°F (129.4°C)
• External: 150°F (66°C)
• Maximum Air Velocity: UL 181/ULC S110
• Erosion Test: 6,000 fpm (30.5 m/s)
• Static Pressure Limit: UL 181/ULC S110 ±2 in. w.g. (500 Pa)
• Water Vapor Sorption: ASTM C1104 3% at 120°F (49°C), 95% R.H.
• Mold Growth: UL 181/ULC S110 Meets requirements
• Fungi Resistance: ASTM G21 Meets requirements
• Bacteria Resistance: ASTM G22 Meets requirements
• Flame Spread: 25
• Smoke Developed: 50
• Fire Retardancy: Flame Penetration 30 min.

Specification
Thickness 1-1/2 in.
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 95.25
Exterior Dimensions (D) (inches) 0.051600
Exterior Dimensions (W) (inches) 60.000000
Exterior Dimensions (H) (inches) 120.000000
Shipping Weight (lbs) 3.000000
