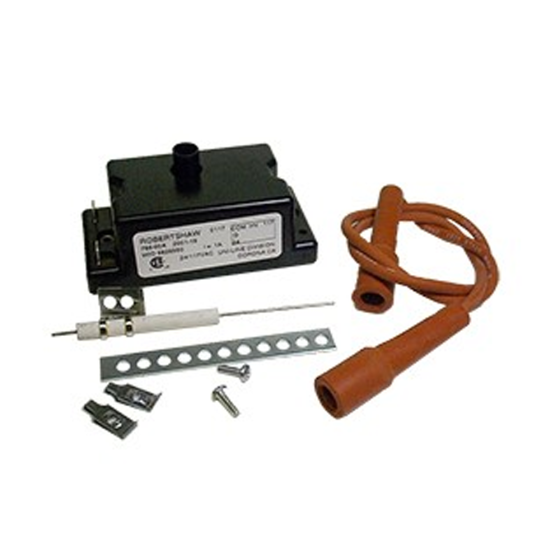

Robertshaw® Automatic Pilot Relight Kit

PRODUCT DETAILS

The Robertshaw® 785 Series Automatic Pilot Relight Kits are designed for use on rooftop heating equipment, water heaters, boilers, space heaters, unit heaters, dryers, and other commercial, industrial, and residential appliances where the problem of pilot outage may occur. It should only be applied to those systems which already incorporate the necessary pilot-safety control system.

FEATURES & BENEFITS

• Series Application: Pilot Relight Kit
• Electrode Assembly: Order 10-395
• High Voltage Cable: Order 1751-726
• Spark Gap: 1/8"
• Temperature Range: -40°F to 185°F
• High Voltage Output: 15kV
• Electrical Rating: 24/120V AC, 0.1 Amps

INCLUDES

• Igniter Assembly & Mounting Bracket

CROSS REFERENCE

• BORG-WARNER (YORK) - 025-19264-00
• GRAINGER - 1WG90
• W.W. GRAINGER - 1WG90
• MARS - 41001
• MARS - 41002
• MARS - 41003
• CARRIER/AIR COND.CO. - 5059-023
• WHITE-RODGERS - 5059-101
• WHITE-RODGERS - 5059-122
• WHITE-RODGERS - 5059-134
• WHITE-RODGERS - 5059-21
• WHITE-RODGERS - 5059-22
• WHITE-RODGERS - 5059-23
• WHITE-RODGERS - 5059-24
• WHITE-RODGERS - 5059-25
• WHITE-RODGERS - 5059-28
• WHITE-RODGERS - 5059-29
• WHITE-RODGERS - 5059-32
• WHITE-RODGERS - 5059-33
• WHITE-RODGERS - 5059-34
• WHITE-RODGERS - 5059-36
• WHITE-RODGERS - 5059-37
• WHITE-RODGERS - 5059-38
• WHITE-RODGERS - 5059-39
• WHITE-RODGERS - 5059-40
• WHITE-RODGERS - 5059-41
• WHITE-RODGERS - 5059A-21
• WHITE-RODGERS - 5059A-22
• WHITE-RODGERS - 5059A-500
• WHITE-RODGERS - 5059A-502
• WHITE-RODGERS - 5059A-600
• CARRIER/AIR COND.CO. - 534-1
• LENNOX INDUSTRIES - 56P23
• UNKNOWN - 56P2301
• UNI-LINE - 63403
• UNKNOWN - 661403
• LENNOX INDUSTRIES - 75F2601
• CARRIER/AIR COND.CO. - 990-195
• UNKNOWN - 99908092
• ITT/GENERAL CONTROL - AM10A303A
• JOHNSTONE SUPPLY - L38-127
• CARRIER - LH33W2-502
• CARRIER - LH33WZ059
• CARRIER - LH33WZ510
• CARRIER/AIR COND.CO. - P771-1015
• CARRIER/AIR COND.CO. - P771-1016
• CAMSTAT - PR-120-00
• CAMSTAT - PR120-36W
• WESTWARD - PR-120-36W
• CAMSTAT - PR-24-00
• CAMSTAT - PR-24-36W
• CAMSTAT - SIG-24-00
