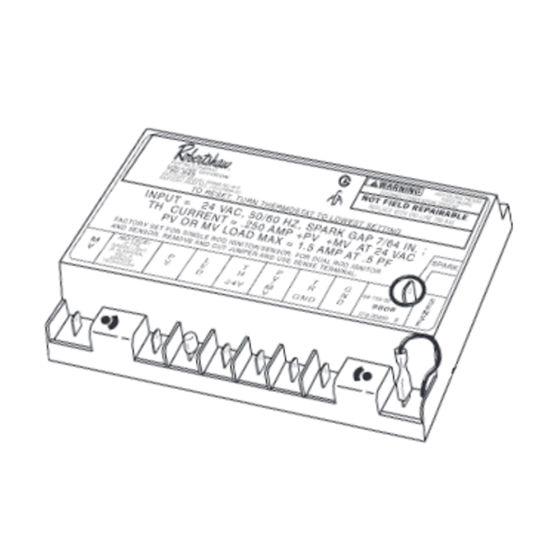

Robertshaw® Universal Ignition Control Uni-Kit® - Lockout
Item
780-002
APPLICATIONS
The Robertshaw® 780 Series Pilot Controls Uni-Kits® feature a flame sense circuit that will work equally well on a one rod (local sense) or a two rod (remote sense) application. The automatic recycle features assure that, in the event of flame failure, main gas is disabled and the spark repetition sequence is restarted until pilot gas is ignited. Only after pilot ignition has been re-established can main gas be returned to the burner.
FEATURES & BENEFITS
• Spark Rate: 3 to 4 per second
• Maximum Total Current Load: 1.5 Amps
• Flame Failure Re-Ignition Time: 0.8 seconds
• Thermostat Anticipator Setting: 0.7 Amps
• Temperature Range: -40°F to 175°F
• Flame Sensor Current: 0.7 mA DC @ 25°C
• Transformer: 24V AC, 20VA
• Control Voltage: 24V AC 50/60 Hz
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 9.000000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 4.400000 | Shipping Weight (lbs) | 3.000000 |
