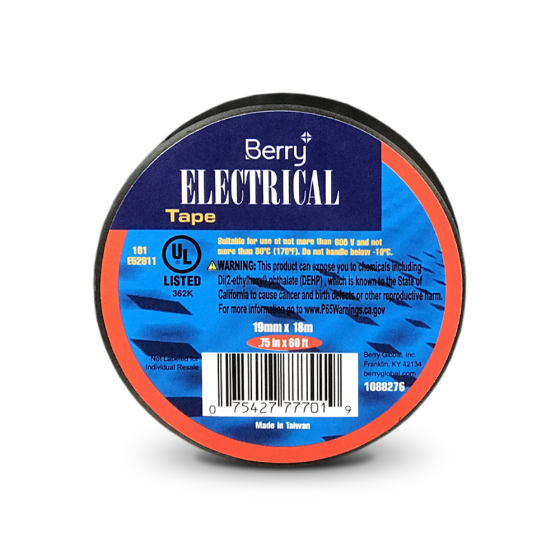

Berry 777 General Purpose PVC Electrical Tape 3/4 in., 60 ft, 7 mil (Black)
Item
777-3/4X60
APPLICATIONS
Berry 777 General Purpose PVC Electrical Tape is ideal for wire splicing, spiral wrapping electrical wire and harnesses, and wire insulation.
FEATURES & BENEFITS
• PVC Backing
• Stretchy and conformable for wrapping wires
• Durable
• Conformable
• Provides a strong long-term bond
• No flagging or lifting
• Meets requirements for most electrical applications
• Total Thickness: ASTM D-10007.0 mils 0.178 mm ASTM D-1000
• Adhesion to Steel: 20 oz/in 2.19 N/cm PSTC-101
• Tensile Strength: 18 lb./in 31.52 N/cm ASTM D-1000
• Elongation: 200%
• Dielectric Strength: 600V
• Operating Temperature: 40 - 180 °F 4 - 82 °C
| Specification | |
|---|---|
| Tape Adhesive | Rubber | Tape Length (yd/ft) | 60 ft | Tape Thickness | 7 mil | Tape Type | Electrical Tape | Tape Width | 3/4 in. |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
| General | |
|---|---|
| Color | Black |
